Product Description
Engineered by Gigabyte, this motherboard is designed for **AM4** socket processors and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **18,600 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01670
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
WiFi
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
Audio
Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 3.0 x2 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset
AMD B550
Graphics
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Warranty
3 years
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Part ID: #CAN-01670
Last Updated: 2 days ago

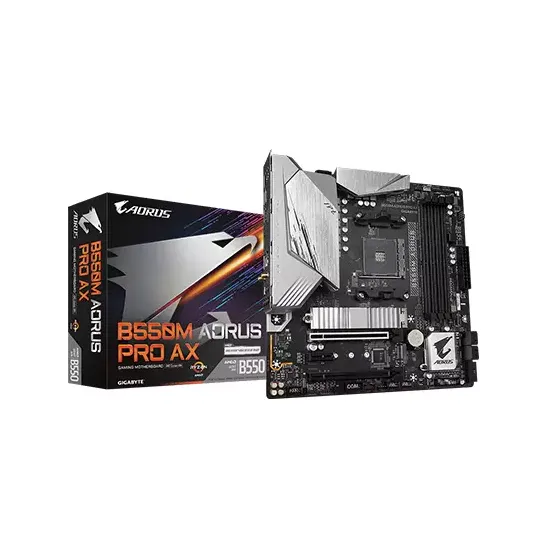

GIGABYTE B550M AORUS PRO AXThe Gigabyte B550M Aorus Pro AX supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors. The B550 AORUS motherboards are equipped with the ultimate power solution which is truly direct, digital and has multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable Gigabyte B550M Aorus Pro AX motherboards for enthusiasts. It offers plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade. Unthrottled performance is guaranteed by the advanced thermal solution which includes Enlarged Heatsinks, High-Quality Thermal Conductivity Pads, and Thermal Guards. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading.B550 motherboards feature RGB FUSION 2.0 and offer the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make your PC unique and stylish. GIGABYTE is reputable for its product durability and high standard of the manufactured process. Needless to say, we use the best, high-quality components on B550 motherboards and reinforce each part of the components to be solid and durable. Good software goes hand in hand with perfect hardware. B550 motherboards bundled several useful and intuitive software to help users to control every aspect of the motherboardThe benefits of AMD StoreMI:Making the PC experience fast, smooth and easyOptimizing computer responsiveness from system boot to application launchOffering SSD performance with HDD capacity at an affordable costQuickly accessing key files by automatically learning users' computing behaviorsSee More Motherboard
