Product Description
Engineered by Gigabyte, this motherboard is designed for **AM4** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. Currently, the lowest price in Bangladesh for this item is **17,000 ৳**, with active inventory listings tracked from Star Tech, Skyland BD.
Part ID: #CAN-10347
Last Updated: 5 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Chipset
AMD B550
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode * Actual support may vary by AMD CPU's specification. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode
M.2 Socket
1 x M.2
Memory
Type
Dual-Channel Architecture
Slots
4 x DDR4 memory slots
Supported Memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
support up to 128GB
Graphics
Graphics
Integrated in the AMD Ryzen 5000 G-Series/4000 G-Series Processors:
Max Shared Memory
16 GB
Connector & Ports
HDMI
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
DVI-D (s)
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s)
4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset:
RAID
Support for RAID 0, RAID 1, and RAID 10
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
TPM (Trusted Platform Module )
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features
Support for APP Center @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software
Support for Windows 11 64-bit Support for Windows 10 64-bit
Warranty Information
Manufacturing Warranty
03 years warranty
Key Features
Model
B550M AORUS ELITE AX
CPU
Socket AM4 supports Ryzen 5000 / 5000 G-Series/ 4000 G-Series and 3000
Supported RAM
4 x DIMM, DDR4 4733(OC) MHz
Graphics Output
1 x HDMI, 1 x DVI-D
Features
1 x M.2 Slot, Realtek GbE LAN chip
Part ID: #CAN-10347
Last Updated: 5 days ago

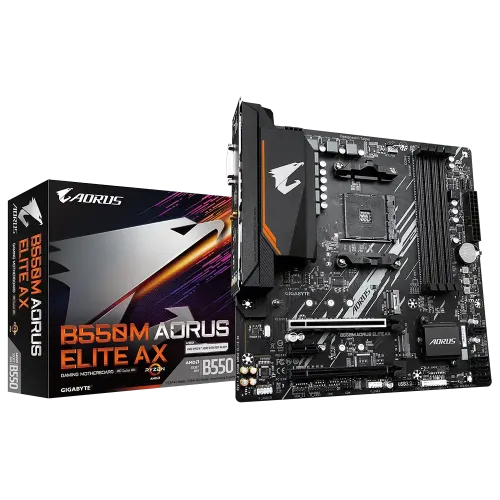

The GIGABYTE B550M AORUS ELITE AX is a versatile micro ATX AMD motherboard designed to support an array of AMD processors, including Ryzen 3000, 4000 G-Series, 5000, and 5000 G-Series, making it adaptable to various system requirements. It boasts four Dual Channel ECC/Non-ECC Unbuffered DDR4 DIMM slots for optimized memory configurations. With its 5+3 Phases Pure Digital VRM Solution featuring Low RDS(on) MOSFETs, the motherboard ensures reliable power delivery, particularly during overclocking sessions. The inclusion of an Ultra Durable PCIe 4.0 Ready x16 Slot allows users to harness the full potential of the latest graphics cards and storage devices. Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 connectors offer high-speed storage options. On the connectivity front, this motherboard excels with onboard Wi-Fi 6E (802.11ax) and Bluetooth 5.3. Moreover, it provides a top-notch audio experience thanks to high-quality audio capacitors and Audio Noise Guard technology. Realtek GbE LAN with bandwidth management ensures a stable network connection, essential for online gaming and content streaming. Video output options are flexible, with both HDMI and DVI support on the rear I/O panel. For those looking to add a touch of personalization to their system, RGB FUSION 2.0 supports addressable LED and RGB LED strips. Smart Fan 5 takes care of system cooling with multiple temperature sensors and hybrid fan headers featuring a fan stop function. In addition, the motherboard simplifies the BIOS update process through Q-Flash Plus, which allows updating without installing the CPU, memory, or graphics card. The inclusion of an Anti-Sulfur resistor design enhances component longevity and system reliability, ensuring your PC remains stable over time. The GIGABYTE B550M AORUS ELITE AX is a highly adaptable and feature-rich motherboard suitable for gamers, content creators, and PC enthusiasts, offering excellent performance, connectivity options, and customization features.Buy GIGABYTE B550M AORUS ELITE AX DDR4 mATX AM4 Motherboard from Star TechIn Bangladesh, you can get original GIGABYTE B550M AORUS ELITE AX DDR4 mATX AM4 Motherboard From Star Tech. We have a large collection of latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The GIGABYTE B550M AORUS ELITE AX Motherboard comes with 3 years warranty.
