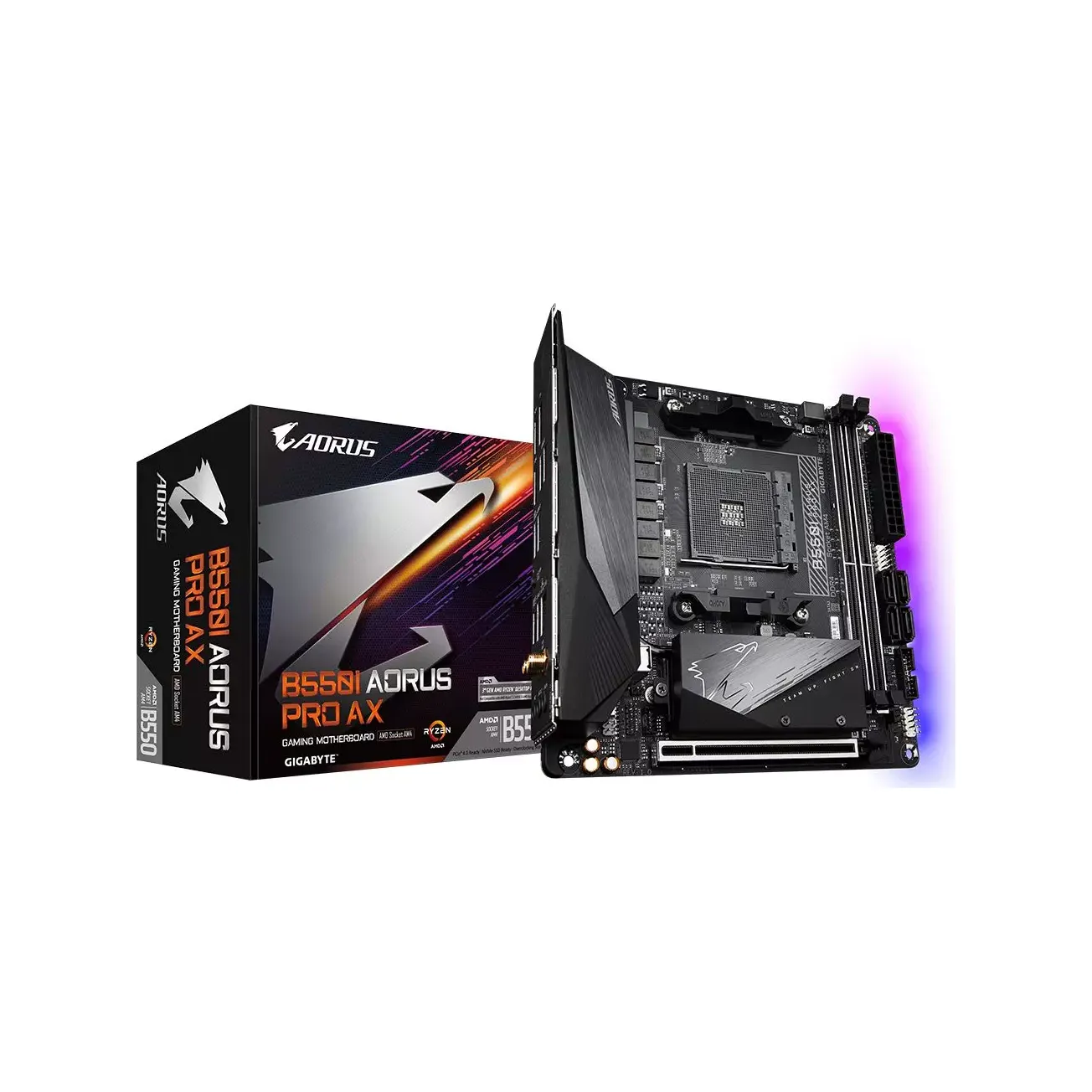

Gigabyte GIGABYTE B550I AORUS PRO AX AMD Motherboard

Unlock the full potential of your AMD Ryzen processor with the GIGABYTE B550I AORUS PRO AX AMD Motherboard, designed for enthusiasts and professionals seeking top-tier performance and reliability. With its robust feature set, this motherboard is ideal for building a powerful gaming PC, content creation machine, or high-performance workstation.

Key Features and Benefits

Supports AMD Ryzen 5000 series and 4000 series processors for exceptional processing power and efficiency
Wi-Fi 6 and high-quality audio capacitors for seamless wireless connectivity and immersive audio experience
High-quality power delivery system with 12+1 phases and 90A power chokes for stable and efficient power delivery
RGB Fusion 2.0 and Addressable RGB headers for customizable lighting effects and ambient lighting
USB 3.2 Gen 2 ports and high-speed storage support for rapid data transfer and storage

Exclusive Technologies

The GIGABYTE B550I AORUS PRO AX motherboard is built with cutting-edge technologies that amplify its performance and functionality. Some of these key features include:

Realtek ALC1220-VB audio codec for crystal-clear audio and advanced noise-reduction algorithms, delivering an immersive audio experience.

StoreMI technology that combines the benefits of SSDs and HDDs, providing a responsive and efficient storage solution.

Smart Fan 5 for customizable fan profiles and intelligent fan control, ensuring optimal system cooling and reduced noise levels.

AORUS PRO AX motherboard with robust power delivery and high-quality components, designed to deliver exceptional performance and durability.

Part ID: #CAN-01589 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily

Retailer	Stock Status	Price	Last Checked	Action
TechLand BD GIGABYTE B550I AORUS PRO AX AMD Motherboard	In Stock	Call for Price	4 hours ago	Buy Now
Creatus Computer Gigabyte B550I Aorus PRO AX AMD Motherboard	In Stock	Call for Price	4 hours ago	Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

USB CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header

BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Audio Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel

Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode

Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Chipset AMD B550

Graphics Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz Maximum shared memory of 16 GB

Warranty 03 Years

Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

Supported CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors

Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs: - 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs - New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs: - Supporting SATA and PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10

External I/O Ports 1 x DisplayPort 2 x HDMI ports 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks

Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper

Part ID: #CAN-01589 Last Updated: 1 month ago
