Product Description

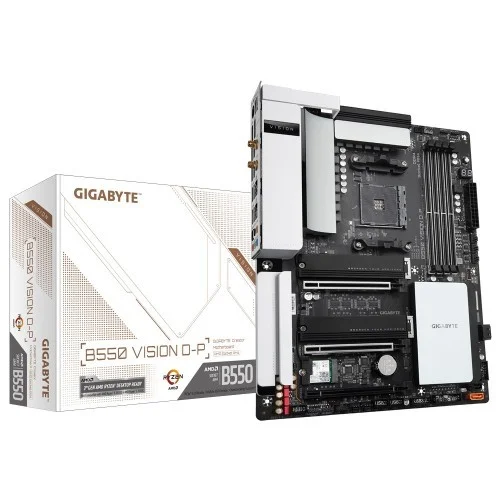

Gigabyte B550 VISION D-P AM4 ATX Motherboard
The Gigabyte B550 VISION D-P is a high-performance motherboard designed for content creators, professionals, and PC enthusiasts who demand the best. With its robust feature set and cutting-edge technology, this motherboard delivers unparalleled performance, reliability, and connectivity for heavy-duty applications such as video editing, 3D rendering, and more.
Key Features and Benefits
- Supports AMD Ryzen 5000 Series and 3rd Generation Ryzen processors for exceptional performance and power efficiency.
- Four DDR4 slots with speeds up to 5400 (O.C.) MHz for seamless multitasking and memory-intensive applications.
- Two Intel Thunderbolt 3 connectors for fast data transfer, display connectivity, and daisy-chaining up to 12 devices.
- Dual 2.5GbE LAN ports for increased bandwidth and instant failover for smooth data flow.
- Intel Wi-Fi 6 AX200 for fast and reliable wireless connectivity with speeds up to 2.4Gbps.
Proprietary Technologies and Features
Groundbreaking PCIe 4.0 Hardware Design
The Gigabyte B550 VISION D-P motherboard boasts a groundbreaking PCIe 4.0 hardware design, ensuring that your content creation PC remains future-proof and capable of handling demanding workloads. With PCIe 4.0, you can enjoy faster data transfer rates, reduced bottlenecks, and improved overall system performance. Additionally, the motherboard features M.2 Thermal Guard, a unique thermal solution that prevents throttling and bottlenecks from M.2 devices, ensuring that your storage performance remains unthrottled and efficient.
Part ID: #CAN-02014
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
Gigabyte B550 VISION D-P AM4 ATX Motherboard
|
In Stock | Call for Price | 4 hours ago | |
|
PC House
Gigabyte B550 VISION D-P AM4 ATX Motherboard
|
In Stock | Call for Price | 1 month ago | |
|
PC House
GIGABYTE B550 VISION D AMD MOTHERBOARD
|
Check Stock | 23,500 | 1 month ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Ryzen 5000 Series/ 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors
Chipset
AMD B550
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x8 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x8 mode 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode
M.2 Socket
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs
Memory
Type
DDR4
Slots
4 x DIMM slots
Supported Memory
AMD Ryzen 5000 series processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules,Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
Up to 128GB (32 GB single DIMM capacity)
Graphics
Graphics
Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors + Intel Thunderbolt 3 Controller: 2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880 @60 Hz with 24 bpp * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-6, "Back Panel Connectors," for more information.) * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR.Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Max Shared Memory
16 GB
Connector & Ports
HDMI
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz
USB (s)
2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880 @60 Hz with 24 bpp Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset + Intel Thunderbolt 3 Controller: 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 1 x USB 2.0/1.1 port on the back panel Chipset + 2 USB 2.0 Hubs: 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Intel 2.5GbE LAN chip (2.5 Gbit/ 1000 Mbit/ 100 Mbit) (LAN1) Realtek 2.5GbE LAN chip (2.5 Gbit/ 1000 Mbit/ 100 Mbit) (LAN2)
Wireless Communication module
Intel Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/ 5 GHz Dual-Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10
Audio
Realtek ALC1220-VB codec Support for DTS:X Ultra High Definition Audio 2/ 4/ 5.1/ 7.1-channel Support for S/PDIF Out
Internal I/O Ports
1 x 24-pin ATX main power connector,1 x 8-pin ATX 12V power connector 1 x CPU fan header,1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers,2 x addressable LED strip headers,2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x SATA DOM power connector 1 x front panel header,1 x front panel audio header,1 x USB Type-C™ port, with USB 3.2 Gen 1 support,1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button
TPM (Trusted Platform Module )
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Warranty Information
Manufacturing Warranty
03 Years
Others
Special Features
Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus,Support for Q-Flash,Support for Xpress Install
Part ID: #CAN-02014
Last Updated: 1 month ago
