Product Description

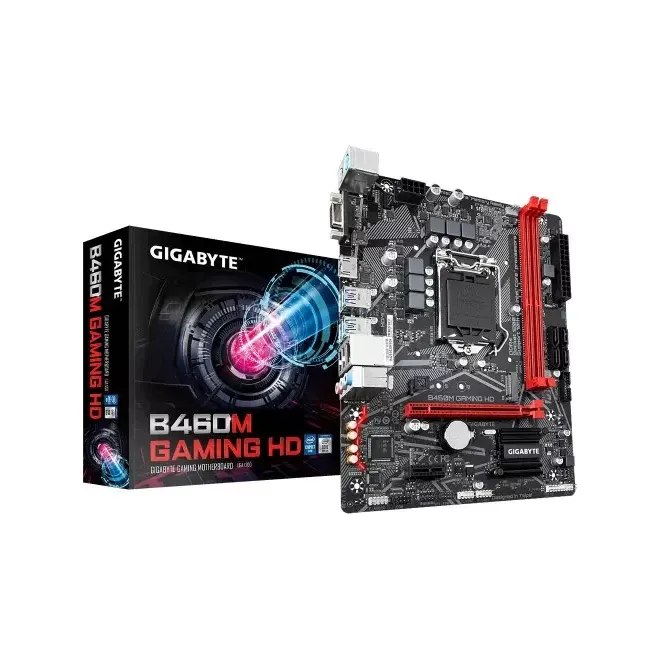

Unleash Your Gaming Potential with the B460M GAMING HD
The Gigabyte B460M GAMING HD is designed for serious gamers and PC enthusiasts who demand high-performance and reliability from their system components. With its robust feature set and 10th Gen Intel Core processor support, this Micro ATX motherboard is the perfect foundation for your gaming rig.
Key Features and BenefitsThe B460M GAMING HD boasts the following features and benefits:
- Support for 10th Gen Intel Core processors, delivering exceptional performance and power efficiency
- Micro ATX form factor, ideal for compact gaming systems and media centers
- High-quality audio capacitors and a dedicated audio processor for immersive sound
- 4x DDR4 memory slots, supporting up to 128GB of RAM and speeds up to 5000MHz
- USB 3.2 Gen 2 and high-speed SATA 6Gb/s ports for fast data transfer and storage
The B460M GAMING HD incorporates several advanced technologies to enhance your system's performance and stability:
Smart Fan 5 technology for reliable and quiet cooling, with customizable fan profiles and temperature monitoring
Q-Flash Plus allows for easy BIOS updates without installing a CPU or memory
RGB Fusion 2.0 enables stunning lighting effects and customization through Gigabyte's RGB software
Part ID: #CAN-01760
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek GbE LAN chip (1000/100 Mbit)
USB
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Slots
1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (The PCI Express slots conform to PCI Express 3.0 standard.)
Memory
2 x DDR4 DIMM Supported Memory Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Mamory : 64 GB
Chipset
Intel® B460 Express Chipset
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Max Shared Memory 512MB
Warranty
03 Years
Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm
Supported CPU
Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package L3 cache varies with CPU
Supported Storage
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready
External I/O Ports
1 x PS/2 mouse port 1 x PS/2 keyboard port 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
