Product Description

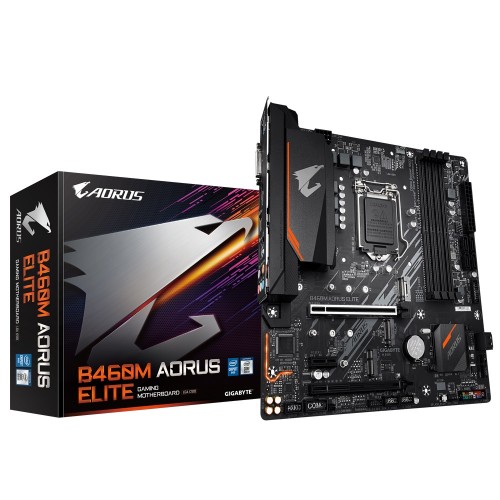

Engineered by Gigabyte, this motherboard is designed for **LGA1200** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **10,500 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-02168
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
PC House
Gigabyte B460M Aorus Elite DDR4 10th Gen Intel Micro ATX Motherboard
|
In Stock | 10,500 | 2 hours ago | |
|
Computer Village
Gigabyte B460M Aorus Elite DDR4 10th Gen Intel Micro ATX Motherboard
|
In Stock | 11,250 | 2 hours ago | |
|
Nexus Computer
Gigabyte B460M AORUS ELITE DDR4 10th Gen Intel Motherboard
|
Check Stock | 10,400 | 2 hours ago |
Historical Pricing Trend
Product Specifications
BASIC INFORMATION
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Basic Information
Chipset
Intel B460 Express Chipset
Audio
Realtek ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel
CPU
Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
Memory
Memory
Type: Dual channel memory architecture Slots: 4 x DDR4 DIMM sockets Supported Memory: Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory: 128 GB
Storage
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
Graphics
Graphics
Graphics: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for up to 3 displays at the same time Max Shared Memory: 512 MB
Connector & Ports
HDMI
1 x HDMI port (maximum resolution of 4096x2160@30 Hz)
LAN
Intel GbE LAN chip (1000 Mbit/100 Mbit)
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
USB Port
Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
WARRANTY INFORMATION
Manufacturing Warranty
3 Years
Part ID: #CAN-02168
Last Updated: 2 days ago
Gigabyte B460M Aorus Elite DDR4 10th Gen Intel Micro ATX MotherboardSupports 10th Gen Intel® Core™ Series ProcessorsDual Channel Non-ECC Unbuffered DDR4, 4 DIMMsAdvanced Thermal Design with Enlarged HeatsinkExclusive Ultra Durable™ PCIe Metal ShieldingDual NVMe PCIe PCIe 3.0 X4 M.2 ConnectorsSmart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPBlazing Fast Intel® GbE LAN with cFosSpeedIntel® USB 3.2 Gen1 Type-C™ SupportM.2 E-key Slot for PCIe WIFI Module UpgradableAMP-UP Audio with ALC1200 with Nichicon MW Audio CapacitorsRGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED StripsPre-installed IO Shield for Easy and Quick InstallationQ-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics CardGIGABYTE 400 series motherboards use a 4+2 Hybrid digital PWM + Lower RDS(on) MOSFETs design to support the latest Intel Core CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. The maximum memory capacity on the B460 motherboard is 128GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 128GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing. AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential. With an integrated base plate, GIGABYTE Motherboards give users a strong foundation to build their Gaming PCs. With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.See More Motherboard
