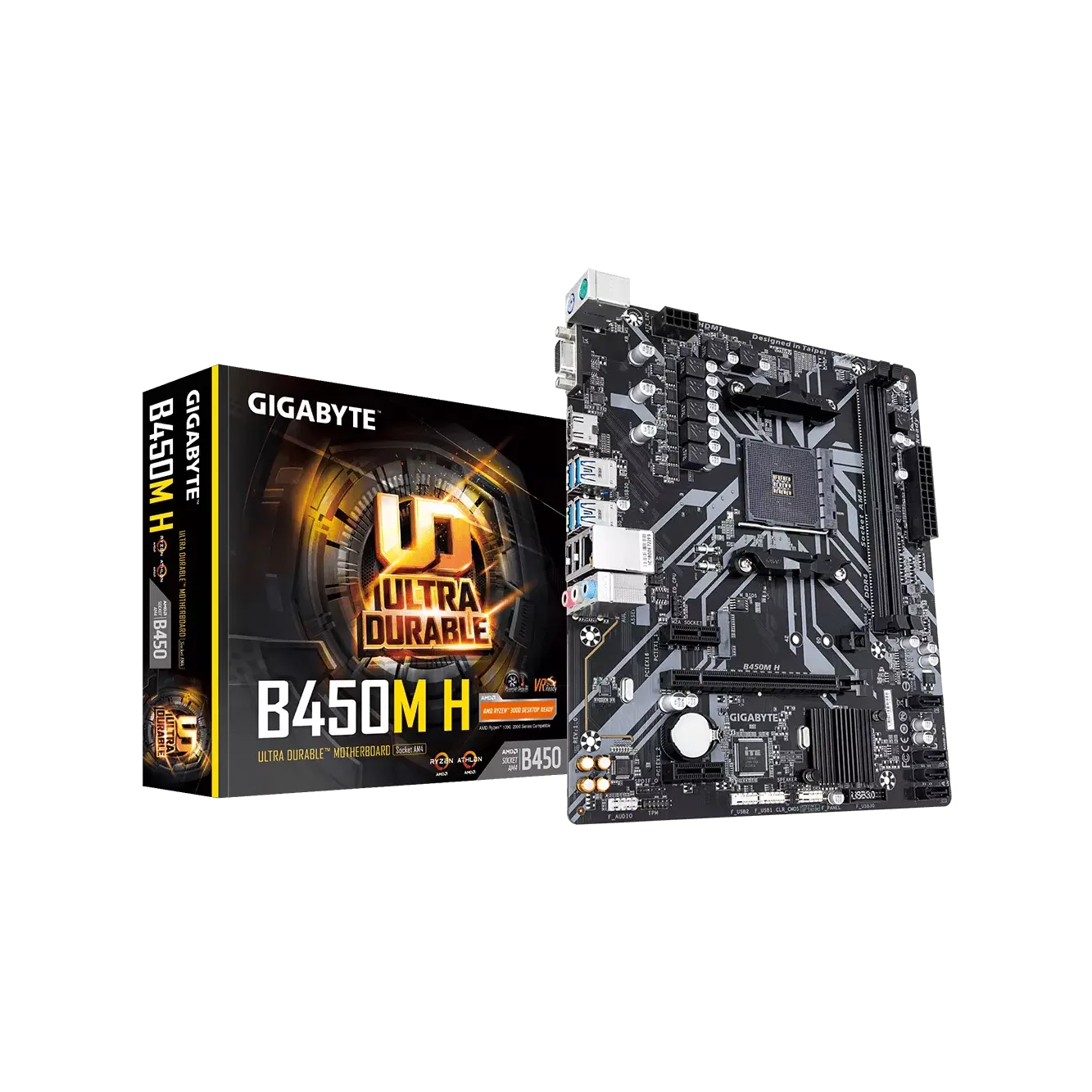

prose p { text-align: justify; } Gigabyte B450M H Ultra Durable Motherboard SpecificationCPUChipset: AMD B450CPU Socket: AM4AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ 1st Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processorsBack Panel I/OChipset:2 x USB 3.1 Gen 1 ports available through the internal USB header6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)CPU:4 x USB 3.1 Gen 1 ports on the back panelDisplay: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 HzAudio:Realtek ALC887 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF OutEthernet / Controller: Realtek GbE LAN chip (1000 Mbit/100 Mbit)MemoryMemory Slots: 2 x DDR4 DIMMMemory Support: Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modulesMaximum Capacity: 32 GBChannel Architecture: Dual ChannelStorage ExpansionSATA: 4 x SATA 6Gb/s connectorsM.2: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)RAID 0, RAID 1, and RAID 10Internal I/O1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x CPU cooler LED strip/RGB LED strip header1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x speaker header1 x Clear CMOS jumper1 x chassis intrusion headerSpecial FeaturesSupport for APP CenterAutoGreenCloud StationEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSmart KeyboardSmart SurveySystem Information ViewerUSB BlockerSupport for Q-FlashSupport for Xpress InstallAudioRealtek ALC887 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF OutSoftwareSupported Operating Systems: Windows 10 (64-Bit)Windows 7 (64-Bit)PhysicalForm Factor: Micro ATX Form FactorDimensions:  24.4cm x 20.5cmGIGABYTE B450M H Motherboard in BangladeshSupports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics ProcessorsDual Channel Non-ECC Unbuffered DDR4, 2 DIMMsHDMI, D-sub Ports for Multiple DisplayUltra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode supportGIGABYTE Exclusive 8118 Gaming LAN with Bandwidth ManagementRGB Fusion supports RGB LED Strips in 7-ColorsHigh Quality Audio Capacitors and Audio Noise Guard DesignSmart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan HeadersAPP Center Including EasyTune™ and Cloud Station™ UtilitiesThe GIGABYTE B450M H Ultra Durable AMD AM4 Micro-ATX Motherboard is a reliable and compact motherboard built on the AMD B450 chipset, designed to support a wide range of AM4 socket processors. It is compatible with 1st, 2nd, and 3rd Generation AMD Ryzen processors, including Ryzen CPUs with Radeon Vega Graphics, making it a flexible choice for both standard and integrated graphics builds. This Micro-ATX board features 2 DDR4 DIMM slots supporting up to 32GB of dual-channel memory, with speeds up to 3600MHz (O.C.). It supports both ECC (operating in non-ECC mode) and non-ECC unbuffered memory modules, along with Extreme Memory Profile (XMP) for optimized performance. For storage, it includes 4 SATA 6Gb/s connectors and 1 M.2 slot (Socket 3, M Key) supporting 2242/2260/2280 SATA and PCIe x4/x2 SSDs. RAID configurations 0, 1, and 10 are supported for enhanced storage performance or redundancy. In terms of connectivity, the rear panel offers 4 USB 3.1 Gen 1 ports (via CPU) and 2 USB 2.0 ports, along with internal headers for additional USB connections. Display outputs include 1 HDMI port (up to 4096×2160@60Hz) and 1 D-Sub port (up to 1920×1200@60Hz) for processors with integrated graphics. Networking is handled by a Realtek GbE LAN controller (10/100/1000 Mbps). Audio is powered by the Realtek ALC887 codec, supporting 2/4/5.1/7.1-channel High Definition Audio with S/PDIF Out support. Internal connectors include a 24-pin ATX power connector, 8-pin CPU power connector, CPU and system fan headers, RGB LED strip header, TPM header, USB headers, and more for expansion and customization. Special features such as RGB Fusion, Q-Flash, EasyTune, Smart Backup, Fast Boot, Game Boost, and APP Center enhance user experience and system management. The board supports Windows 10 (64-bit) and Windows 7 (64-bit) operating systems. With a compact size of 24.4cm × 20.5cm and durable construction, the GIGABYTE B450M H Ultra Durable motherboard is an excellent choice for budget gaming PCs, office builds, and home systems requiring stable performance and upgrade flexibility.
