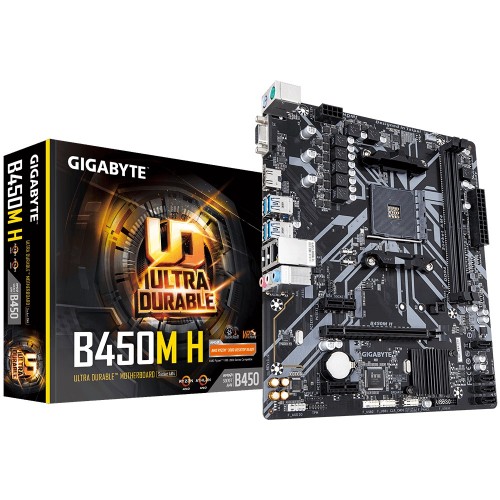

GIGABYTE B450M H AMD AM4 Micro-ATX Motherboard

Motherboard • Brand: Gigabyte • Aggregating live prices from leading computer stores in Bangladesh.

Status
In Stock
2 listings tracked
Lowest Deal Out of Stock
Price Range Single price listing
GIGABYTE B450M H AMD AM4 Micro-ATX Motherboard

Product Description

Engineered by Gigabyte, this motherboard is designed for **AM4** socket processors and featuring a **Micro-ATX** form factor, providing a reliable foundation for custom desktop systems. This item is currently out of stock or unavailable at our tracked local computer stores in Bangladesh.
Part ID: #CAN-01218 Last Updated: 2 days ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech GIGABYTE B450M H AMD AM4 Micro-ATX Motherboard
In Stock Call for Price 3 hours ago
Sell Tech GIGABYTE B450M H AMD AM4 Micro-ATX Motherboard
Check Stock Call for Price 2 hours ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ 1st Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors
Chipset AMD B450
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor: 24.4cm x 20.5cm

Expansion Slots

PCI 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)

Memory

Type Dual channel memory architecture
Slots 2 x DDR4 DIMM
Supported Memory Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 32 GB

Graphics

Graphics Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Max Shared Memory 16 GB

Connector & Ports

HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s) Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

Others

Special Features Support for APP Center AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install

Warranty Information

Manufacturing Warranty 03 years

Key Features

Model GIGABYTE B450M H Ultra Durable
Part ID: #CAN-01218 Last Updated: 2 days ago
GIGABYTE AM4 motherboards are ready to support the latest AMD Ryzen 3000 Processors and are backward compatible with AMD Ryzen 2000 and 1000 Processors. With a rich list of features on GIGABYTE AM4 motherboards such as Armor for PCIe/ memory slots, USB Type-C interfaces on select boards, refined audio quality, high-speed Ethernet, and the latest standard WIFI design, GIGABYTE AM4 motherboards are perfect for users looking to build the best AMD platform systems. GIGABYTE 400-series motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance-driven system. GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, but 5 more hybrid fan headers that support both PWM and Voltage mode fans have also been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking. GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery. GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.
