Product Description

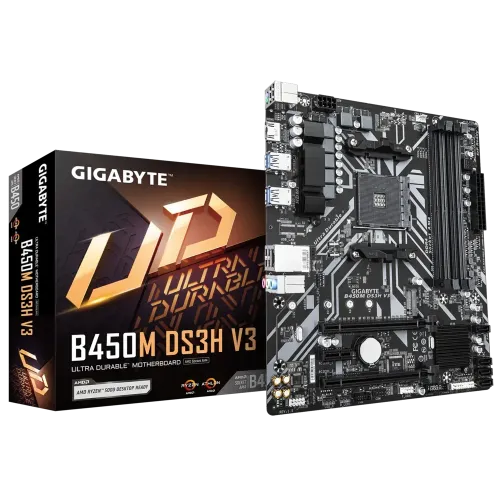

Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard
Compact Power for the Modern Build
Designed for gaming rigs, productivity setups, and budget-friendly builds, the Gigabyte B450M DS3H V3 is a versatile foundation for your next PC project. With robust support for a wide range of AMD Ryzen CPUs, this compact Micro ATX motherboard ensures future-ready compatibility and performance scalability.
Key Features:
- Supports AMD Ryzen 5000 Series, 5000G, 4000G, and earlier generations with Radeon Vega Graphics and Athlon processors
- Four DDR4 DIMM slots supporting up to 128GB of system memory with dual-channel architecture and XMP profiles
- Integrated HDMI 2.1 port with support for 4K resolution at 60Hz and HDCP 2.2
- Realtek Gigabit LAN chip for seamless networking and stable internet connectivity
- High-speed M.2 connector supporting both SATA and PCIe NVMe SSDs (up to 22110 form factor)
Proprietary Technologies
The Gigabyte B450M DS3H V3 motherboard features a range of advanced technologies designed to enhance performance and user experience. These include:
RGB Fusion Support
The motherboard includes multiple LED headers standard and addressable, allowing builders to customize lighting effects and sync with other RGB components. Smart Fan control, temperature and voltage monitoring, and fail warnings ensure thermal stability and system longevity.
Built for Performance and Versatility
The Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard is a flexible choice for users with legacy systems or modern OS needs. It supports Windows 11, 10, and even Windows 7 (with Pinnacle Ridge or Summit Ridge CPUs), making it an ideal option for DIY PC enthusiasts, gamers, and professionals alike.
Part ID: #CAN-00958
Last Updated: 4 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
Gigabyte B450M DS3H V3 DDR4 AMD Micro-ATX Motherboard
|
In Stock | 10,000 | 2 hours ago | |
|
Star Tech
Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard
|
In Stock | 10,400 | 2 hours ago | |
|
Skyland BD
Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard
|
In Stock | 11,200 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM4, support for: AMD Ryzen 5000 Series/ AMD Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ 3rd Generation AMD Ryzen/ 2nd Generation AMD Ryzen/ 1st Generation AMD Ryzen/ 2nd Generation Ryzen with Radeon Vega Graphics/ 1st Generation Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Chipset
AMD B450
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 21.5cm
Audio
Realtek Audio codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out
Expansion Slots
PCI
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
M.2 Socket
1 x M.2 connector
Memory
Type
DDR4
Slots
4 x DIMM
Supported Memory
Dual channel memory architecture Support for DDR4 2933/2667/2400/2133 MT/s memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
128 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Max Shared Memory
16 GB
Connector & Ports
HDMI
1 x HDMI port
USB (s)
Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s)
Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon-series/ 7th Gen. A-series or Athlon X4 APU. 4 x SATA 6Gb/s connectors
RAID
Support for RAID 0, RAID 1, and RAID 10
Audio
3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
Others
Special Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
B450M DS3H V3
Supported CPU
Ryzen 5000/ 5000 G/ 4000 G/3rd/ 2nd/1st Gen Processors for Socket AM4
Supported RAM
4 x DDR4, up to 128GB, 2933MT/s
Graphics Output
1 x HDMI port, Onboard 16GB
Features
1 x M.2 Slot, Realtek GbE LAN
