Status
In Stock
3 listings tracked
Lowest Deal
9,900
Best Deal
Price Range
9,900 to 10,299
Save 4%
Product Description
Engineered by Gigabyte, this motherboard is designed for **AM4** socket processors and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **9,900 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01757
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Ultra Technology

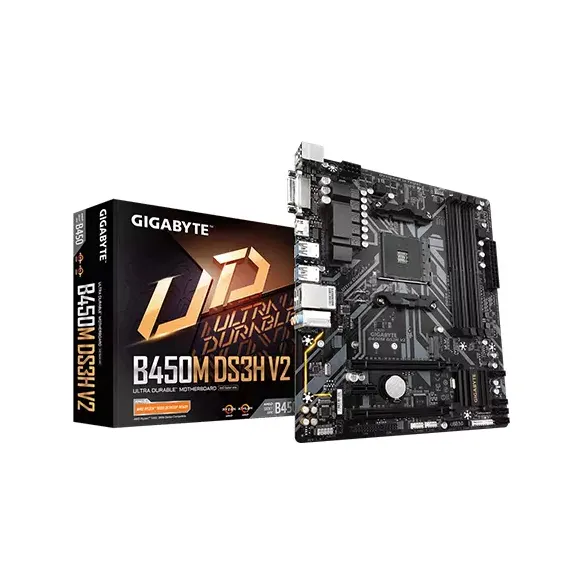

GIGABYTE B450M DS3H V2 ULTRA DURABLE AMD MOTHERBOARD
|
In Stock | 9,900 | 2 hours ago | |
|
Creatus Computer
GIGABYTE B450M DS3H V2 Ultra Durable AMD Motherboard
|
In Stock | 10,299 | 3 hours ago | |
|
TechLand BD
GIGABYTE B450M DS3H V2 Ultra Durable AMD Motherboard
|
Check Stock | 10,600 | 3 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek GbE LAN chip (1000/100 Mbit)
USB
2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out
Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset
AMD B550
Graphics
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2.(Note)
Warranty
03 Years
Form Factor
Micro ATX Form Factor; 24.4cm x 21.5cm
Supported CPU
AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Supported Storage
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
External I/O Ports
1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
Part ID: #CAN-01757
Last Updated: 2 days ago
Unlock Powerful Ryzen Performance with the GIGABYTE B450M DS3H V2 MotherboardThe GIGABYTE B450M DS3H V2 Ultra Durable AMD Motherboard is a budget-friendly yet powerful solution designed to support AMD Ryzen processors. Built with the AM4 socket, this motherboard is compatible with a wide range of CPUs, including 3rd, 2nd, and 1st Gen Ryzen processors, as well as Ryzen and Athlon processors with Radeon Vega Graphics. Whether you're building a new PC or upgrading an existing system, this board provides reliable performance with solid build quality. One of the key highlights is its support for up to 128GB of DDR4 memory across four DIMM slots. It accommodates high-speed memory modules up to DDR4 3600 MHz (O.C.), allowing you to optimize your system for faster multitasking and enhanced gaming performance. It also supports ECC and non-ECC un-buffered memory and Extreme Memory Profile (XMP) modules for flexible customization. The Micro ATX form factor ensures wide compatibility with most PC cases, while the dual PCIe x16 slots provide room for expansion, including support for discrete GPUs. The HDMI and DVI-D ports offer resolutions up to 4096x2160@60Hz and 1920x1200@60Hz, respectively, for vibrant visuals. In terms of connectivity, the B450M DS3H V2 includes 4 USB 3.1 Gen 1 ports, 4 USB 2.0 ports, Gigabit LAN, and 3 audio jacks powered by the Realtek ALC887 codec for rich sound. Storage expansion is supported via one M.2 slot and four SATA 6Gb/s ports, offering flexibility for SSDs and HDDs.Features of GIGABYTE B450M DS3H V2 MotherboardHigh Memory Capacity Up to 128GB: Equipped with 4 DDR4 DIMM slots, the motherboard supports up to 128GB RAM with speeds up to DDR4 3600 MHz (OC), allowing smooth multitasking and gaming.Dual Graphics Support: Includes two PCIe x16 slots (x16 + x4), offering support for discrete GPUs—ideal for gamers and content creators needing graphics power and expandability.Ultra High-Resolution Display Output: Comes with HDMI 2.0 and DVI-D ports supporting resolutions up to 4096x2160@60Hz, delivering sharp, high-definition visuals for entertainment and work.Advanced Audio with Realtek ALC887: Enjoy immersive audio with 7.1-channel HD audio powered by the Realtek ALC887 codec, with S/PDIF out support for enhanced sound clarity.Fast and Flexible Storage Options: Features one M.2 slot and four SATA 6Gb/s connectors, enabling fast SSD installations and plenty of room for additional HDDs or SSDs.Connectivity: Includes 4 USB 3.1 Gen 1 ports and 4 USB 2.0 ports for faster data transfers and compatibility with a variety of peripherals.Durable Build Quality: Built on GIGABYTE Ultra Durable standards with solid capacitors and high-quality components for long-lasting performance and stability.RGB & TPM Support: Offers a dedicated RGB LED header for lighting customization and TPM header for enhanced security options—great for both aesthetics and protection.CPU Compatibility: Supports AMD AM4 socket processors including 1st, 2nd, and 3rd Gen Ryzen, Ryzen with Radeon Vega Graphics, and Athlon with Radeon Vega Graphics—perfect for various budget and performance builds.GIGABYTE B450M DS3H V2 price in BDThis reliable and budget-friendly AMD motherboard is a popular choice among PC builders in Bangladesh. The Gigabyte B450M DS3H V2 is available at an approximate price range of BDT 9,500 to BDT 11,500, depending on the retailer and current market conditions. It supports AMD Ryzen 1st, 2nd, and 3rd Gen processors, offers up to 128GB DDR4 RAM support, and features HDMI, DVI-D, and high-speed connectivity options. Ideal for gaming and general use, this micro ATX board ensures solid performance at a great value. For the most accurate pricing, always check with trusted tech stores or online marketplaces in Bangladesh.Performance of GIGABYTE B450M DS3H V2 MotherboardThe GIGABYTE B450M DS3H V2 Ultra Durable AMD Motherboard delivers outstanding performance for budget-conscious PC builders. Powered by the AMD B450 chipset and compatible with Ryzen 1000 to 3000 series processors, it ensures smooth multitasking and efficient computing. With support for up to 128GB DDR4 RAM and memory speeds up to 3600 MHz (OC), it enhances gaming and productivity. The motherboard includes PCIe x16 slots for GPU upgrades, an M.2 slot for fast SSDs, and Realtek ALC887 audio for rich sound. Ideal for gamers and professionals, the B450M DS3H V2 offers reliable and stable performance for everyday computing...
