Product Description

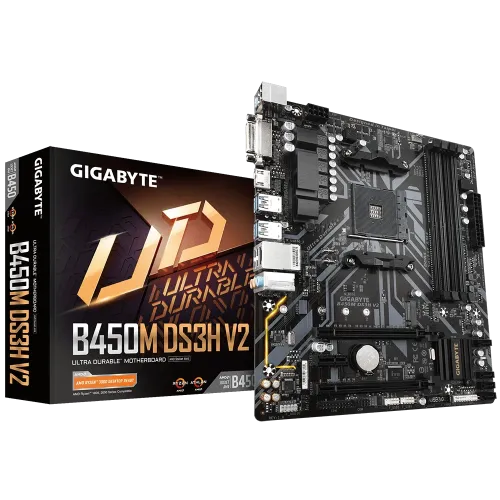

Unlock Your Gaming Potential with the Gigabyte B450M DS3H V2
The Gigabyte B450M DS3H V2 is the perfect motherboard for gamers and content creators who demand high-performance computing, excellent power management, and robust connectivity. With its cutting-edge features and support for the latest AMD Ryzen processors, this motherboard is designed to deliver exceptional results in demanding applications.
Key Features and Performance Highlights:The Gigabyte B450M DS3H V2 boasts the following key features and performance benefits:
- Support for AMD Ryzen 5000 series, Ryzen 5000 G-Series, 3rd Gen Ryzen, and 2nd Gen Ryzen processors
- Four dual-channel DIMMs for faster multitasking and increased memory capacity
- One M.2 PCIe connector for fast storage and improved system responsiveness
- Realtek GbE LAN for stable and fast network connectivity
- Support for DDR4 memory up to 3600MHz for improved system performance
- High-quality audio components and Audio Noise Guard for immersive audio experiences
The Gigabyte B450M DS3H V2 features advanced technologies that enhance system performance, stability, and efficiency. Key highlights include:
- 4+2 phase digital VRM solution for balanced voltage and improved system stability
- Smart Fan 5 for optimized cooling and reduced noise levels
- Audio Noise Guard with LED trace route lighting for improved audio quality
- APP Center for easy system monitoring and control
Part ID: #CAN-01243
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Gigabyte B450M DS3H V2 AMD AM4 Micro ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
PC House
Gigabyte B450M DS3H V2 AMD AM4 Micro ATX Motherboard
|
In Stock | 10,700 | 4 hours ago | |
|
Computer Village
Gigabyte B450M DS3H V2 AM4 Micro ATX Motherboard
|
In Stock | 10,800 | 4 hours ago | |
|
Nexus Computer
Gigabyte B450M DS3H V2 AMD Micro ATX Motherboard
|
In Stock | 10,800 | 4 hours ago | |
|
Skyland BD
Gigabyte B450M DS3H V2 AMD AM4 Micro ATX Motherboard
|
In Stock | 11,000 | 4 hours ago | |
|
Sell Tech
Gigabyte B450M DS3H V2 AM4 AMD Micro ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Chipset
AMD B450
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 21.5cm
Audio
Realtek Audio codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out
Expansion Slots
PCI
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Memory
Type
DDR4
Slots
4 x DIMM
Supported Memory
Dual channel memory architecture Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
128 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics
Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Max Shared Memory
16 GB
Connector & Ports
HDMI
1 x HDMI port
DVI-D (s)
1 x DVI-D port
USB (s)
Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s)
Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon-series/ 7th Gen. A-series or Athlon X4 APU. 4 x SATA 6Gb/s connectors
RAID
Support for RAID 0, RAID 1, and RAID 10
Audio
3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
Others
Special Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
B450M DS3H V2
Supported CPU
Ryzen 5000/ 5000 G/ 3rd/ 2nd/1st Gen Processors for Socket AM5
Supported RAM
4 x DDR4, up to 128GB, 3600(O.C.)
Graphics Output
1 x DVI-D port, 1 x HDMI port
Features
1 x M.2 Slot, Realtek GbE LAN
