Product Description

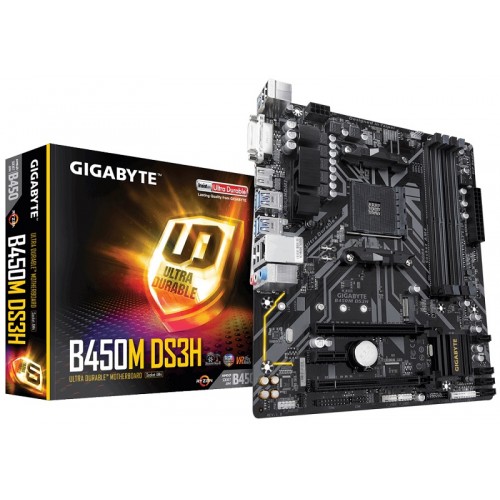

Gigabyte B450M DS3H AMD Micro ATX Motherboard
Welcome, PC enthusiasts and builders, to the perfect motherboard for your next project - the Gigabyte B450M DS3H. With its robust feature set and compatibility with the latest AMD Ryzen processors, this Micro ATX motherboard is designed to deliver exceptional performance and value.
Key Features and Benefits- Supports AMD Ryzen 2nd Generation processors, AMD Ryzen with Radeon Vega Graphics processors, and AMD Ryzen 1st Generation processors
- 4 x DDR4 DIMM slots, supporting up to 64GB of dual-channel memory with speeds of up to 3200 MHz
- 1 x M.2 connector, supporting SATA and PCIe 3.0 x4/x2 SSDs, as well as 3 x PCIe slots for expanded graphics and storage options
- Realtek GbE LAN and Realtek ALC887 codec High Definition Audio for reliable networking and audio performance
- RGB Fusion supports RGB LED Strips in 7-colors, adding a touch of style to your build
High-Quality Audio and Cooling Features
The Gigabyte B450M DS3H motherboard features high-quality audio capacitors and an Audio Noise Guard with LED Trace Path Lighting, ensuring crystal-clear sound and reduced electromagnetic interference. Additionally, this motherboard supports the latest cooling technologies, including RGB LED Strips, to help keep your system running at optimal temperatures.
Part ID: #CAN-00961
Last Updated: 5 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
|
In Stock | 10,500 | 3 hours ago | |
|
Nexus Computer
Gigabyte B450M DS3H AM4 Socket AMD Motherboard
|
In Stock | 10,700 | 2 hours ago | |
|
PC House
Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
|
In Stock | 10,800 | 2 hours ago | |
|
Computer Village
Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
|
In Stock | 11,400 | 2 hours ago | |
|
Creatus Computer
Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
|
Check Stock | Call for Price | 2 hours ago | |
|
PCB Store
GIGABYTE B450M DS3H AM4 Micro ATX Motherboard
|
Check Stock | 12,800 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors
Chipset
AMD B450
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 21.5cm
Expansion Slots
PCI
1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
M.2 Socket
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU.
Memory
Type
Dual Channel DDR4 Memory Technology
Slots
4 x DIMM
Supported Memory
Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
64 GB
Graphics
Graphics
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2
Max Shared Memory
2 GB
Connector & Ports
HDMI
1 x HDMI port
USB (s)
Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s)
Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Audio
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
Warranty Information
Manufacturing Warranty
03 years
Key Features
Model
B450M DS3H
Chipset
AMD B450
Memory
4 x DDR4, Max 64 GB
