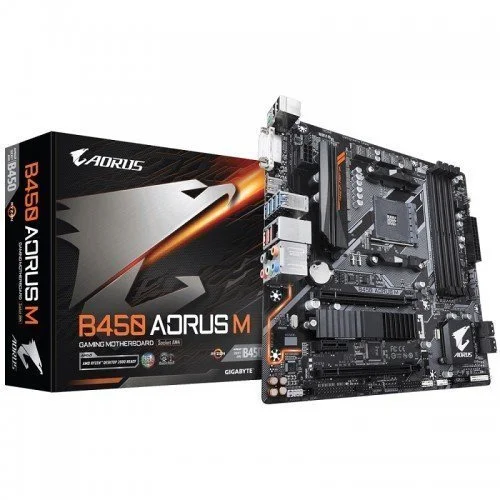

Gigabyte B450 AORUS M AMD Micro ATX Motherboard

Product Description

Unlock Your Gaming Potential with the Gigabyte B450 AORUS M Motherboard

The Gigabyte B450 AORUS M motherboard is designed for PC enthusiasts and gamers seeking a reliable and high-performance platform for their AMD Ryzen processor. With its advanced features and robust build quality, this motherboard is the perfect choice for building a powerful gaming PC or workstation.

Key Features and Benefits:

  • Support for AMD Ryzen 2nd Generation processors and Ryzen with Radeon Vega Graphics processors
  • 4 x DIMM slots supporting up to 64 GB of DDR4 memory with speeds up to 3200 MHz
  • 1 x PCI Express x16 slot running at x16, perfect for high-end graphics cards
  • 1 x M.2 connector supporting SATA and PCIe 3.0 x4/x2 SSDs
  • Realtek GbE LAN and high-quality audio with Realtek ALC892 codec
  • Support for dual-channel memory, RAID 0, RAID 1, and RAID 10

Advanced Technologies and Features:

Gigabyte B450 AORUS M: Built for Performance and Reliability

The Gigabyte B450 AORUS M motherboard features a range of advanced technologies and features designed to deliver exceptional performance and reliability. With its robust power delivery system, high-quality audio capacitors, and durable components, this motherboard is built to withstand the demands of high-performance computing. The motherboard also supports advanced cooling solutions, including CPU and system fan headers, and RGB LED strip headers for customizable lighting.

Part ID: #CAN-02101 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Nexus Computer Gigabyte B450 AORUS M AMD Micro ATX Motherboard
In Stock 13,200 3 hours ago
Buy Now
Creatus Computer Gigabyte B450 AORUS M AMD Micro ATX Motherboard
Check Stock 10,200 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors
Chipset AMD B450
BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Expansion Slots

PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

Memory

Type Dual Channel DDR4 Memory Technology
Slots 4 x DIMM
Supported Memory Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 64 GB

Graphics

Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. * Actual support may vary by CPU.
Max Shared Memory 16 GB

Connector & Ports

HDMI 1 x HDMI
DVI-D (s) 1 x DVI-D
USB (s) Chipset: 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Audio Realtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB (RGBW) LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)

Warranty Information

Manufacturing Warranty 03 years
