Product Description

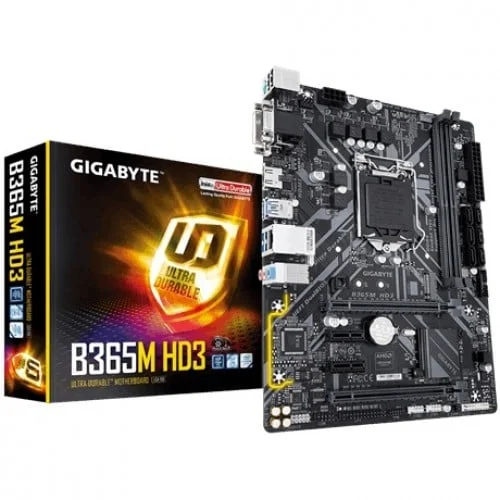

Gigabyte B365M HD3 9th Gen Motherboard
The Gigabyte B365M HD3 motherboard is specifically designed for gamers and enthusiasts seeking a high-performance, feature-rich motherboard without breaking the bank. With its robust feature set and compatibility with 9th and 8th gen Intel Core processors, this ultra-durable micro ATX motherboard is an ideal choice for building a powerful gaming PC or workstation.
Key Features and Benefits- Support for 8th and 9th Gen Intel Core processors, including i7, i5, i3, Pentium, and Celeron models
- Dual channel memory architecture with support for DDR4 2666/2400/2133 MHz memory modules
- 1 x PCI Express x16 slot and 2 x PCI Express x1 slots for graphics and expansion cards
- 1 x M.2 Socket 3 connector with PCIe Gen3 x4 and SATA interface for ultra-fast storage
- Realtek GbE LAN chip and Intel Optane Memory Ready for reliable networking and storage
- Realtek ALC887 codec with 2/4/5.1/7.1-channel high definition audio support
The Gigabyte B365M HD3 motherboard boasts several proprietary technologies that enhance its performance and usability. The motherboard's advanced thermal design and Smart Fan 5 system ensure optimal cooling and reduced noise levels. Additionally, the motherboard's high-quality audio capacitors and isolated audio layout provide a superior audio experience.
Part ID: #CAN-02007
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Key Features
Form Factor
mATX
Basic Information
Chipset
Intel® B360 Express Chipset
Supported CPU
Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
BIOS
2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 18.5cm
Memory
Ram Type
DDR4
Type
2 x DDR4 DIMM sockets supporting
Slots
Dual channel memory architecture
Supported Memory
Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
Maximum Mamory
32 GB
Expansion Slots
PCI
1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x PCI slot
M.2 Socket
1 x M.2 Socket 3 connector
Graphics
Graphics
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.
Max Shared Memory
1GB
Connector & Ports
USB (s)
6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready
Audio
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty
03 years
Part ID: #CAN-02007
Last Updated: 1 month ago
