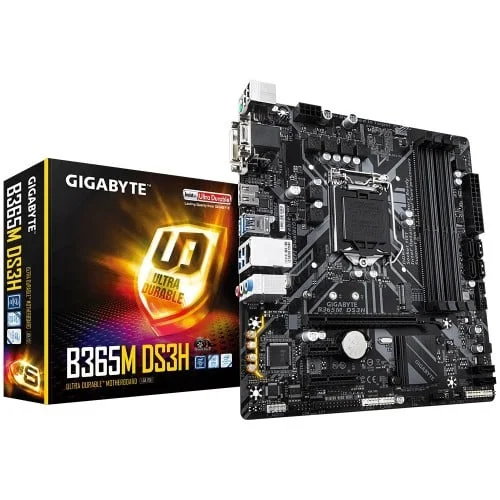

Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard

Status
In Stock
2 stores
Lowest 8,300 BDT
Price Range Single price listing
Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard

Product Description

Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard

Upgrade your gaming and content creation experience with the Gigabyte B365M DS3H DDR4 motherboard, designed specifically for enthusiasts and professionals who demand high-performance computing. This ultra-durable Micro ATX motherboard supports 9th/8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors, delivering exceptional processing power and efficiency.

Key Features and Benefits

Technical Highlights:

  • Support for 9th/8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors
  • 4 DDR4 slots with support for up to 64GB of memory at 2666/2400/2133 MHz
  • 1 x M.2 Socket 3 with support for SATA and PCIe x4/x2 SSDs
  • 1 x PCI Express x16 slot running at x16
  • Integrated Intel HD graphics with 1GB shared graphics memory
  • Realtek GbE LAN chip with 10/100/1000 Mbit support

Advanced Technologies and Features

Proprietary Technologies:

The Gigabyte B365M DS3H DDR4 motherboard features a range of advanced technologies, including the Intel B365 Express Chipset, which provides a robust and efficient platform for high-performance computing. Additionally, the motherboard supports DualBIOS and dual ultra-fast M.2 slots, enabling users to take full advantage of their high-speed storage devices.

Warranty Information

Manufacturing Warranty:

This motherboard is backed by a 3-year warranty, providing users with peace of mind and protection against defects in materials and workmanship.

Part ID: #CAN-02005 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Computer Village Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard
In Stock 8,300 4 hours ago
Buy Now
Creatus Computer Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard
Check Stock Call for Price 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Key Features

Form Factor mATX

Basic Information

Chipset Intel B365 Express Chipset
Supported CPU 9th/8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors
BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX

Memory

Ram Type DDR4
Type DDR4
Slots 4
Supported Memory 2666/2400/2133 MHz
Maximum Mamory 64GB

Expansion Slots

PCI 1 x PCI Express x16 slot, running at x16, 1 x PCI Express x4 slot, 1 x PCI Express x1 slot
M.2 Socket 1 x M.2 Socket 3 (type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

Graphics

Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz - The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz - Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time
Max Shared Memory 1 GB

Connector & Ports

HDMI Yes ( 1.4 )
USB (s) 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors - Support for RAID 0, RAID 1, RAID 5, and RAID 10
Audio Audio chipset : 2/4/5.1/7.1-channel Audio channel : Realtek ALC887
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
D-Sub (s) Yes
DVI-D (s) Yes

Warranty Information

Manufacturing Warranty 03 Year Warranty
Part ID: #CAN-02005 Last Updated: 1 month ago
