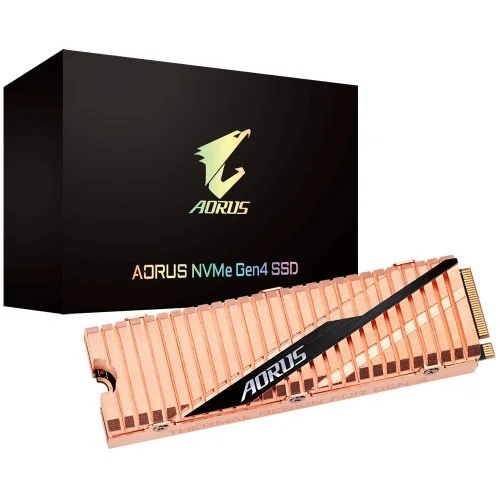

World First PCIe 4.0x4 Controller The World First PCIe 4.0x4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0x4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs. TOSHIBA BiCS4 96 Layers 3D TLC (800MT/s) Toshiba BiCS4 NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on the AORUS NVMe Gen 4 SSD far exceeds that of PCIe 3.0x4 devices for superior storage performance. Xtreme Storage Performance With the new PCIe 4.0 controller, AORUS NVMe Gen 4 SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 2,500MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 40% faster than PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering. Full Body Copper Thermal Solution for Outstanding PCIe 4.0 SSD Performance The Full Body Copper Heatsink takes into account the heat transfer from key components on both the front and back of the device, the controller and NAND Flash. Full copper heatsinks have 69% higher heat transfer capacity compared to aluminum heatsinks giving AORUS NVMe Gen4 SSD the best heat dissipation for read/write performance. Efficient Copper Heat Spreader Design Compared with a plated M.2 heat spreader, new efficient copper heat spreaders with 27 fins add more surface area which improve thermal transfer from heating sources to obtain thermal balance sooner. Moreover, Optimized fin array design does great heat exchange with any direction of air flow. Both unique design make sure key components of PCIe 4.0 SSD to keep suitable working temperature under ultra high transfer rate. SSD Tool Box The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link. Specifications: Key Features Capacity 5‎00GB Form Factor M.2 2280 Flash Type 3‎D TLC Toshiba BiCS4 Interface PCI-Express 4.0x4, NVMe 1.3 Sequential R/W Read speed: Up to 5000 MB/s Write speed: Up to 2500 MB/s Others Power Consumption (Active): Average: R : 5.9W; W : 4.5W Power Consumption (Idle): 1‎3.21mW Physical Specification Dimension 8‎0.5 x 11.4 x 23.5 mm Temperature Operating Temperature 0‎°C to 70°C Storage Temperature -40°C to 85°C Warranty Manufacturing Warranty 3 Years  ..
