Product Description
Engineered by Gigabyte, this motherboard is designed for **AM5** socket processors, built on the **B650** chipset, and featuring a **ATX** form factor, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **21,500 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-10088
Last Updated: 1 week ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Information
Audio
Realtek® Audio CODEC ALC897 High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Back Panel Connectors
1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
CPU
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Please refer “CPU Support List” for more information.)
EXPANSION SLOT
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used. 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
I/O Controller
iTE® I/O Controller Chip
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x serial port header 1 x Clear CMOS jumper
LAN
Realtek® RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Memory
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Onboard Graphics
Integrated Graphics Processor: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version. – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU: – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers
Wireless Communication module
Realtek® RTL8851 WIFI 6 module – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – Support for 11ax wireless standard (Actual data rate may vary depending on environment and equipment.)
Main Features
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Chipset
AMD B650 Chipset
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Warranty Information
Warranty
3 years
Part ID: #CAN-10088
Last Updated: 1 week ago

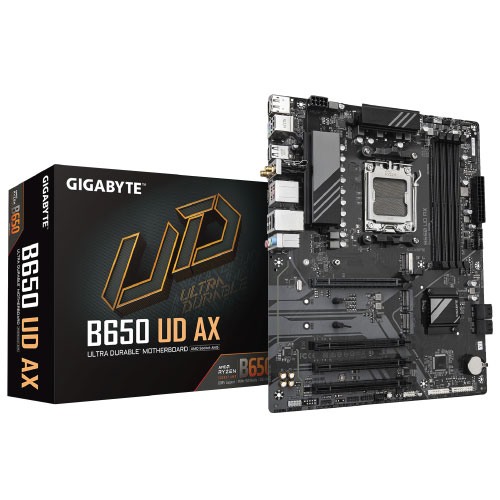

The GIGABYTE AMD B650 UD AX Motherboard is a high-performance ATX board designed for gamers, creators, and PC enthusiasts seeking reliability, speed, and next-generation compatibility. The GIGABYTE AMD B650 UD AX Motherboard, built on the AMD B650 chipset with an AM5 socket, supports AMD Ryzen™ 7000, 8000, and 9000 Series processors, delivering future-proof performance for gaming, multitasking, and content creation. It features four DDR5 DIMM slots supporting up to 256 GB memory at speeds up to 8000(OC) MT/s, with dual-channel architecture and AMD EXPO™/XMP profiles for optimal memory performance. Integrated graphics include DisplayPort 1.4 (3840×2160@144 Hz) and HDMI 2.1 (4096×2160@60 Hz), while the Realtek® ALC897 codec provides up to 7.1-channel high-definition audio. Networking combines Realtek® GbE LAN and Wi-Fi 6 for stable wired and wireless connections. Storage options include three M.2 slots (PCIe 5.0/4.0) and four SATA 6Gb/s ports with RAID support, while expansion slots feature PCIe 4.0 x16 and multiple PCIe 3.0 slots. Connectivity includes USB 3.2 Gen 2, Type-C®, USB 3.2 Gen 1, and USB 2.0 ports. RGB headers, multiple fan/pump headers, and hardware monitoring ensure customizable lighting, advanced cooling, and system stability.Crystal-Clear Visuals and Powerful Memory SupportThe GIGABYTE AMD B650 UD AX delivers 4K visuals with DisplayPort 1.4 and HDMI 2.1 while supporting DDR5 memory up to 8000(OC) MT/s for high-speed gaming and multitasking.Seamless Connectivity and Storage ExpansionWith triple M.2 slots supporting PCIe Gen5/Gen4 SSDs and four SATA 6Gb/s ports, the motherboard ensures ultra-fast storage solutions. Its extensive USB lineup, including USB 3.2 Gen 2 and Type-C®, allows versatile peripheral connections.Reliable Networking and Superior AudioEquipped with Realtek® GbE LAN and Wi-Fi 6, the B650 UD AX ensures stable wired and wireless connections. The Realtek® ALC897 codec delivers rich, high-definition multi-channel audio.Why Choose the GIGABYTE AMD B650 UD AX?Future-proof AM5 socket with Ryzen™ 7000/8000/9000 supportHigh-speed DDR5 memory up to 8000(OC) MT/s, 256 GB max capacityTriple M.2 slots with PCIe Gen5/Gen4 support and RAID capability4K-ready DisplayPort 1.4 and HDMI 2.1 graphics outputRealtek® GbE LAN and Wi-Fi 6 wireless connectivity7.1-channel HD audio with Realtek® ALC897 codecComprehensive cooling and RGB customization optionsATX form factor with durable, reliable buildBuy Now GIGABYTE AMD B650 UD AX Motherboard at Ultra TechnologyThe GIGABYTE AMD B650 UD AX ATX Motherboard, available at Ultra Technology, combines DDR5 performance, PCIe 5.0 storage support, Wi-Fi 6, and advanced connectivity in a sleek, durable design. Perfect for gamers, creators, and professionals seeking a powerful and future-ready platform...
