Product Description

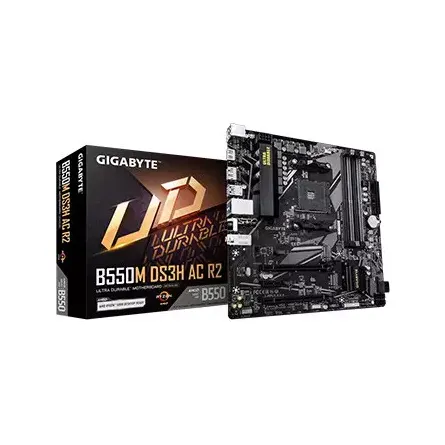

Unlock Unmatched Performance with the Gigabyte B550M DS3H AC R2 DDR4 Motherboard
The Gigabyte B550M DS3H AC R2 DDR4 Motherboard is designed for gamers and professionals seeking top-tier performance in a compact form factor. Built on the AMD B550 chipset, it delivers powerful performance and next-generation connectivity in a space-saving design.
Key Features and Benefits- Supports the latest AMD Ryzen 5000 Series processors for outstanding speed and efficiency
- Dual DDR4 memory slots supporting up to 128GB and speeds up to 4800MHz (OC)
- PCIe 4.0 support for ultra-fast storage and expansion options
- Integrated WiFi 6 and 2.5GbE LAN for seamless, low-latency networking
- SATA 6Gb/s ports and M.2 slots for versatile storage and expansion options
**Smart Features and Enhancements**
The Gigabyte B550M DS3H AC R2 DDR4 Motherboard features advanced technologies and features designed to enhance performance, cooling, and convenience. With Smart Fan 6 technology, it maintains optimal thermal performance, while Q-Flash Plus allows easy BIOS updates without a CPU installed. The motherboard also includes RGB Fusion lighting for customizable aesthetics.
Part ID: #CAN-01459
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
USB
CPU:- 4 x USB 3.2 Gen 1 ports on the back panelChipset:- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header- 2 x USB 3.2 Gen 1 ports available through the internal USB header- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
BIOS
1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
WiFi
Realtek® Wi-Fi RTL8821CE- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band- BLUETOOTH 5.0- Support for 11ac wireless standard(Actual data rate may vary depending on environment and equipment.)
Audio
Realtek® ALC1220 CODEC* The back panel line out jack supports DSD audio.High Definition Audio2/4/5.1/7.1-channel
Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 modeAMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memorySupport for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)Onboard GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)Maximum shared memory of 16 GB
Chipset
AMD B550
Warranty
3 years
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU
AMD Socket AM4, support for:AMD Ryzen 5000 G-Series Processors/AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 3000 Series Processors
Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit
Special Features
I/O ControlleriTE I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
External I/O Ports
2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x HDMI port (Note)1 x DisplayPort (Note)4 x USB 3.2 Gen 1 ports1 x RJ-45 port2 x antenna connectors3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus button
