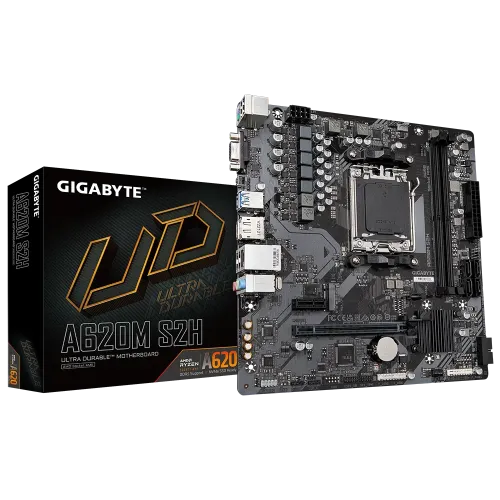

GIGABYTE A620M S2H AMD AM5 Micro-ATX Motherboard

Status
In Stock
1 stores
Lowest Out of Stock
Price Range Single price listing
GIGABYTE A620M S2H AMD AM5 Micro-ATX Motherboard

Product Description

GIGABYTE A620M S2H AMD AM5 Micro-ATX Motherboard

This motherboard is designed for enthusiasts and overclockers seeking a powerful and feature-rich platform for their AMD Ryzen 8000/7000 series processors. The GIGABYTE A620M S2H Micro-ATX motherboard delivers exceptional performance, compatibility, and durability for a wide range of applications.

Key Features and Benefits:

  • Support for AMD Ryzen 8000/7000 series processors through its AMD Socket AM5 for unparalleled performance
  • Dual Channel DDR5 memory architecture with 2*SMD DIMMs for fast memory speeds and high capacities up to 96GB
  • PCIe 4.0 x4 M.2 Connector for SuperSpeed Storage and seamless upgrades
  • GbE LAN for fast and reliable networking
  • Advanced cooling and fan control with Smart Fan 6 and Hybrid Fan Headers featuring FAN STOP technology

Advanced Technologies and Features:

Q-Flash Plus allows BIOS updates without the need to install the CPU, memory, or graphics card, ensuring seamless system upgrades and maintenance.

Smart Fan 6 provides advanced cooling and fan control with multiple temperature sensors and Hybrid Fan Headers featuring FAN STOP technology, ensuring optimal system temperatures and quiet operation.

Support for AMD EXPO and Intel XMP Memory Modules enables users to easily optimize memory performance and achieve higher speeds and capacities.

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices and SATA storage devices, ensuring optimal storage performance and data protection.

Part ID: #CAN-01262 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech GIGABYTE A620M S2H AMD AM5 Micro-ATX Motherboard
In Stock Call for Price 1 week ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD Socket AM5, support for: AMD Ryzen 8000 / 7000 Series Processors
Chipset AMD A620
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 22.5cm
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Expansion Slots

PCI CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Memory

Type DDR5
Slots 2 x DIMM
Supported Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory 96 GB

Graphics

Graphics Integrated Graphics Processor: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
D-Sub (s) 1 x D-Sub port
USB (s) CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Manufacturing Warranty 3 Years

Key Features

Model A620M S2H
Supported CPU Ryzen 8000 / 7000 Series Processors for Socket AM5
Supported Memory 2 x DDR5 6400(OC) Max. 96GB
Graphics Output 2 x DisplayPort, 1 x HDMI port
Features 1 x D-Sub, 1 x DisplayPort, 1 x HDMI
