Product Description

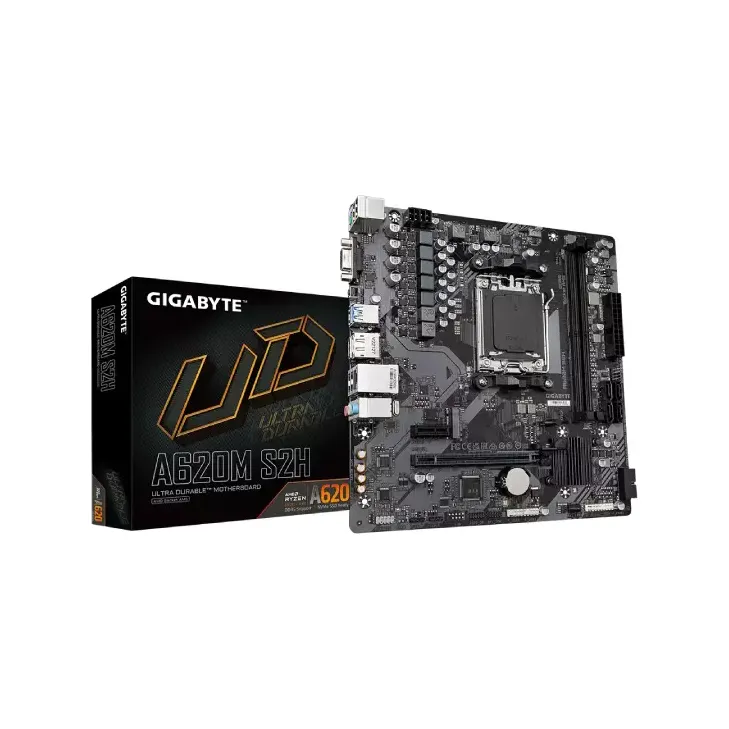

GIGABYTE A620M S2H DDR5 Motherboard: Power Your System with Unmatched Performance
This motherboard is designed for budget-conscious users who want a reliable and high-performance system without breaking the bank. The GIGABYTE A620M S2H DDR5 Motherboard provides a solid foundation for your AMD Ryzen 7000 Series processor-based system, delivering fast data transfer speeds and smooth multitasking capabilities.
Key Features and BenefitsThis motherboard offers numerous features and benefits that make it an excellent choice for builders and users alike. Here are some of its key highlights:
- Supports DDR5 memory with speeds of up to 6400 MT/s for improved multitasking and system responsiveness
- Features dual-channel memory architecture for efficient data transfer and system responsiveness
- Integrated graphics processor with multiple display options, including a D-Sub port, a DisplayPort, and an HDMI port
- Supports AMD Socket AM5 and is compatible with AMD Ryzen 7000 Series Processors
- Includes a PCIe 4.0 x16 slot on the CPU side and a PCIe 3.0 x1 slot on the chipset side for expansion card support
The GIGABYTE A620M S2H DDR5 Motherboard features several advanced technologies and features that enhance its performance and functionality. Some of these include:
AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) support for fine-tuning memory performance
Trusted Platform Module (TPM) header for enhanced system security
GIGABYTE Control Center (GCC) for advanced system management and Q-Flash for easy BIOS updates
Part ID: #CAN-01539
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
GIGABYTE A620M S2H AM5 MICRO-ATX AMD DDR5 MOTHERBOARD
|
In Stock | 13,000 | 4 hours ago | |
|
PC House
GIGABYTE A620M S2H AM5 MICRO-ATX AMD DDR5 MOTHERBOARD
|
In Stock | 13,000 | 4 hours ago | |
|
Nexus Computer
Gigabyte A620M S2H DDR5 Motherboard
|
In Stock | 14,200 | 3 hours ago | |
|
Creatus Computer
GIGABYTE A620M S2H DDR5 AMD AM5 Micro-ATX Motherboard
|
Check Stock | 12,999 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB
CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Slots
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Chipset
AMD A620
Graphics
Integrated Graphics Processor: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Warranty
3 Years
Form Factor
Micro ATX Form Factor; 23.0cm x 22.5cm
Supported CPU
AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Other Features
Back Panel Connectors: - 4 x USB 2.0/1.1 ports - 1 x PS/2 keyboard/mouse port - 1 x D-Sub port - 1 x Q-Flash Plus button - 2 x USB 3.2 Gen 1 ports - 1 x DisplayPort - 1 x HDMI port - 1 x RJ-45 port - 3 x audio jacks I/O Controller: iTE® I/O Controller Chip H/W Monitoring: - Voltage detection - Temperature detection - Fan speed detection - Water cooling flow rate detection - Fan fail warning - Fan speed control Operating System: Support for Windows 11 64-bit Support for Windows 10 64-bit
Special Features
Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Software Features
Norton® Internet Security (OEM version) LAN bandwidth management software
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper
