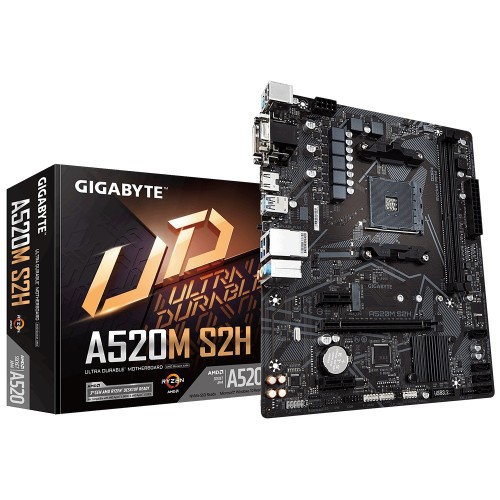

Gigabyte A520M S2H AMD AM4 Micro ATX Motherboard

Status
In Stock
2 stores
Lowest Out of Stock
Price Range Single price listing
Gigabyte A520M S2H AMD AM4 Micro ATX Motherboard

Product Description

Gigabyte A520M S2H AMD AM4 Micro ATX Motherboard

The Gigabyte A520M S2H is a high-performance motherboard designed for PC enthusiasts and gamers who demand the best. With its advanced features and robust design, this motherboard delivers exceptional performance, reliability, and compatibility with the latest AMD Ryzen processors.

Key Features and Benefits

The Gigabyte A520M S2H offers the following key features and benefits:

  • Supports AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • 4+3 phases pure digital PWM + Low RDS(on) MOSFETs design for enhanced system performance
  • Realtek GbE LAN chip for fast and reliable networking
  • Supports dual-channel memory architecture with up to 64 GB of DDR4 memory
  • Multiple USB ports, including 4 x USB 3.2 Gen 1 ports and 6 x USB 2.0/1.1 ports
Advanced Technologies and Features

The Gigabyte A520M S2H features several advanced technologies and features that enhance its performance and user experience, including:

Smart Fan 5

With Smart Fan 5, users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard.

Q-Flash Plus

GIGABYTE Q-Flash Plus allows users to flash the BIOS without needing to install the CPU, memory, and graphics card or enter the BIOS menu. This feature makes it easy to update the BIOS and ensures that users can enjoy the latest features and performance enhancements.

Smart Fan 5 and Fan Stop

The Gigabyte A520M S2H also features Fan Stop, which allows users to map any fan to stop completely when temperatures drop below a specified threshold. This feature ensures that users can achieve fan silence and enjoy a quieter gaming experience.

Part ID: #CAN-01222 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech Gigabyte A520M S2H AMD AM4 Micro ATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
Sell Tech Gigabyte A520M S2H AMD AM4 Micro ATX Motherboard
Check Stock Call for Price 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD A520
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 20.5cm

Expansion Slots

PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Memory

Type Dual channel memory architecture
Slots 2 x DDR4 DIMM
Supported Memory 3rd Gen AMD Ryzen Processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Maximum Memory 64 GB

Graphics

Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Max Shared Memory 16 GB

Connector & Ports

HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s) CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

Others

Special Features Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Support for Q-Flash Support for Xpress Install
Bundled Software Support for Windows 10 64-bit

Warranty Information

Manufacturing Warranty 03 years

Key Features

Model Gigabyte A520M S2H Ultra Durable
