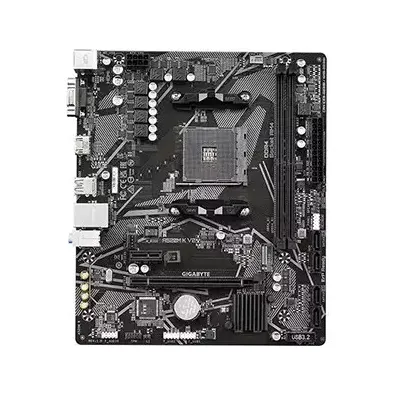

Gigabyte A520M K V2 DDR4 AM4 Socket AMD Motherboard

Status
In Stock
2 stores
Lowest 8,000 BDT
Price Range 8,000 to 8,300 BDT Save 4%
Gigabyte A520M K V2 DDR4 AM4 Socket AMD Motherboard

Product Description

Effortless Performance for Modern AMD Systems

Engineered to meet the demands of budget-friendly builds and performance-driven setups alike, the Gigabyte A520M K V2 DDR4 AM4 Socket AMD Motherboard is a reliable Micro-ATX motherboard designed to support a wide range of AMD Ryzen processors. With its robust feature set and exceptional performance capabilities, this motherboard is an ideal choice for anyone seeking a cost-effective solution for their modern AMD system.

Key Features and Performance Highlights

  • Supports AMD Ryzen processors, including the Ryzen 5000 G-Series, 5000 Series, 4000 G-Series, and 3000 Series
  • Up to 64GB of DDR4 memory support with dual-channel memory configuration for enhanced multitasking and application performance
  • Integrated high-definition audio with 8-channel surround sound and Realtek GbE LAN for fast and stable network connectivity
  • Support for M.2 and SATA storage options, including PCIe NVMe and SATA modes, for faster storage and quick data access
  • Multiple USB ports, including four USB 3.2 Gen 1 Type-A ports and two USB 2.0 Type-A ports, for connecting peripherals
  • AMI UEFI BIOS with a secure and user-friendly interface, and Smart Fan 5 technology for efficient cooling and thermal management

Advanced Technologies and Features

The Gigabyte A520M K V2 motherboard features a range of advanced technologies and features, including the AMI UEFI BIOS with a secure and user-friendly interface, and Smart Fan 5 technology with multiple temperature sensors and hybrid fan headers. This motherboard also includes Realtek high-definition audio with 8-channel surround sound and high-quality audio capacitors, providing clear and immersive sound quality.

Part ID: #CAN-01435 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
TechLand BD Gigabyte A520M K V2 DDR4 AM4 Socket AMD Motherboard
In Stock 8,000 4 hours ago
Buy Now
Ultra Technology Gigabyte A520M K V2 DDR4 AM4 Socket AMD Motherboard
In Stock 8,000 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

LAN Realtek GbE LAN chip (1 Gbps/ 100 Mbps)
USB CPU:4 x USB 3.2 Gen 1 ports on the back panelChipset:2 x USB 3.2 Gen 1 ports available through the internal USB header6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
BIOS 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Raid Support for RAID 0, RAID 1, and RAID 10
Audio Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel
Slots PCICPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1M.2 Socket1 x M.2 connector
Memory Up to 64GBSupported MemorySupport for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules
Chipset AMD A520
Graphics Integrated Graphics Processor:1 x HDMI port, supporting a maximum resolution of 4096x2160@60 HzSupport for HDMI 2.0 version and HDCP 2.2.Max Shared Memory16 GB
Warranty 3-Years
Form Factor Micro ATX Form Factor; 23.3cm x 19.8cm
Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 and Ryzen 3000 G-Series Processors
Other Features TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Bundled Software Norton Internet Security (OEM version)LAN bandwidth management software
Special Features Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneSmart BackupSystem Information ViewerSupport for Q-FlashSupport for Xpress Install
Supported Storage CPU:1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)Chipset:4 x SATA 6Gb/s connectors
Internal I/O Ports 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x speaker header1 x Clear CMOS jumper1 x chassis intrusion header
