Product Description

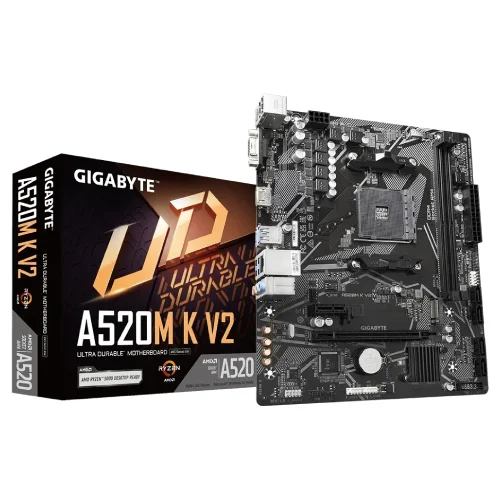

GIGABYTE A520M K V2 AM4 Micro ATX Motherboard
This motherboard is designed for small to mid-sized builds, perfect for home offices, low-cost gaming rigs, and entry-level content creation systems. With its efficient A520 chipset, it offers great stability and performance for AMD Ryzen CPUs on the AM4 socket.
Key Features and Benefits
- Support for AMD Ryzen 5000, 4000, and 3000 Series CPUs
- Up to 64GB DDR4 memory, with support for ECC and extreme memory profiles
- 1 x HDMI port, supporting up to 4096x2160@60 Hz
- 1 x M.2 connector, supporting SATA and PCIe 3.0 x4/x2 SSDs
- Realtek GbE LAN chip, with 1 Gbps/ 100 Mbps speeds
Advanced Technologies and Performance
Efficient Power Delivery and Thermal Design
The GIGABYTE A520M K V2 Motherboard features a finely tuned power delivery system and an intuitive, user-friendly BIOS. Its efficient thermal design enables stable operation under sustained workloads, making it an excellent foundation for demanding applications.
Other Notable Features
The motherboard also includes a range of other features, including:
- Support for APP Center, with EasyTune, Smart Backup, and System Information Viewer
- Support for Q-Flash and Xpress Install
- Norton Internet Security (OEM version) and LAN bandwidth management software
Part ID: #CAN-00940
Last Updated: 4 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
GIGABYTE A520M K V2 AM4 Micro ATX Motherboard
|
In Stock | 8,196 | 2 hours ago | |
|
Star Tech
GIGABYTE A520M K V2 AM4 Micro ATX Motherboard
|
In Stock | 8,200 | 2 hours ago | |
|
Computer Village
GIGABYTE A520M K V2 AM4 Micro ATX Motherboard
|
In Stock | 8,200 | 2 hours ago | |
|
Sell Tech
GIGABYTE A520M K V2 AM4 Micro ATX Motherboard
|
In Stock | 8,200 | 2 hours ago | |
|
Skyland BD
GIGABYTE A520M K V2 AM4 Micro ATX Motherboard
|
In Stock | 8,200 | 1 hour ago | |
|
PCB Store
GIGABYTE A520M K V2 AM4 Micro ATX Motherboard
|
Check Stock | 8,200 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Chipset
AMD A520
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 23.3cm x 19.8cm
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI
CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
M.2 Socket
1 x M.2 connector
Memory
Type
DDR4
Slots
2 x DIMM
Supported Memory
Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
64 GB (32 GB single DIMM capacity)
Graphics
Graphics
Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version and HDCP 2.2.
Max Shared Memory
16 GB
Connector & Ports
HDMI
1 x HDMI port
USB (s)
CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/ 100 Mbps)
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors
RAID
Support for RAID 0, RAID 1, and RAID 10
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header
TPM (Trusted Platform Module )
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
03-Year Warranty
Key Features
Model
A520M K V2
Supported CPU
Ryzen 5000/ 5000G/4000G/ 3000/3000G Series CPU for AM4 Socket
Supported RAM
2 x DDR4, up to 64GB, 5100(O.C.)
Graphics Output
1 x HDMI, 1x D-Sub
Features
1 x M.2 Slot, Realtek GbE LAN
