Product Description

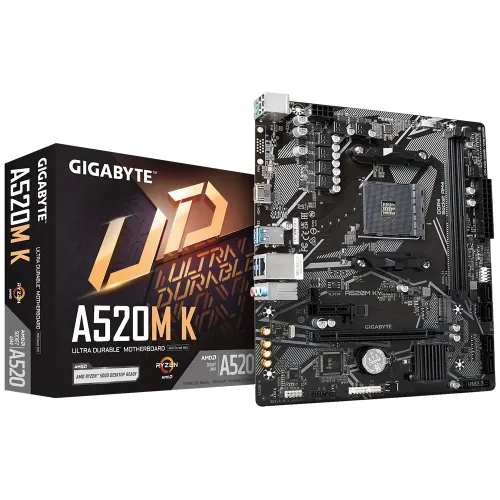

GIGABYTE A520M K AM4 Micro ATX Motherboard: Power Your Gaming and Content Creation
The GIGABYTE A520M K is designed for gamers and content creators who demand high-performance computing and reliable systems. This micro ATX motherboard offers a robust platform for a wide range of AMD processors, ensuring optimal performance and flexibility.
Key Features and BenefitsThis motherboard boasts the following key features and benefits:
- Supports a wide range of AMD Ryzen processors, including Ryzen 5000, Ryzen 5000 G-Series, Ryzen 4000 G-Series, and Ryzen 3000 Series
- Supports dual-channel ECC or non-ECC unbuffered DDR4 memory with two DIMM slots
- Includes a PCIe Gen3 x4 M.2 slot for fast storage devices
- Features a GbE LAN port with bandwidth management for optimal network performance
- Offers 8-channel HD audio with high-quality audio capacitors for immersive audio reproduction
- Supports the GIGABYTE APP Center for easy system management and control
The GIGABYTE A520M K features several proprietary technologies that enhance its performance and reliability:
The motherboard includes multiple temperature sensors and hybrid fan headers, which enable precise control over the system's cooling through the Smart Fan 5 feature. This allows the system to adapt to temperature fluctuations and optimize fan speeds accordingly, ensuring efficient and quiet operation. Additionally, the FAN STOP feature enables the fans to stop spinning under low system loads, reducing noise levels and increasing energy efficiency.
Part ID: #CAN-00936
Last Updated: 12 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
GIGABYTE A520M K AMD AM4 Micro ATX Motherboard
|
In Stock | 7,999 | 2 hours ago | |
|
Skyland BD
GIGABYTE A520M K AM4 Micro ATX Motherboard
|
In Stock | 8,100 | 1 hour ago | |
|
PC House
GIGABYTE A520M K AM4 Micro ATX Motherboard
|
In Stock | 8,199 | 2 hours ago | |
|
Star Tech
GIGABYTE A520M K AM4 Micro ATX Motherboard
|
In Stock | 8,200 | 2 hours ago | |
|
Computer Village
GIGABYTE A520M K AM4 Micro ATX Motherboard
|
In Stock | 8,530 | 2 hours ago | |
|
Ultra Technology
Gigabyte A520M K AM4 Micro ATX Motherboard
|
Check Stock | Call for Price | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors
Chipset
AMD A520
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 23.3cm x 19.8cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI
CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
M.2 Socket
1 x M.2 connector
Memory
Type
DDR4
Slots
2 x DIMM
Supported Memory
Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
64 GB (32 GB single DIMM capacity)
Graphics
Graphics
Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version and HDCP 2.2.
Max Shared Memory
16 GB
Connector & Ports
HDMI
1 x HDMI port
USB (s)
CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/ 100 Mbps)
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors
RAID
Support for RAID 0, RAID 1, and RAID 10
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 port 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
03-Year Warranty
Key Features
Model
A520M K
Supported CPU
Ryzen 5000/ 5000 G/4000 G/ 3000 Series Processors for Socket AM5
Supported RAM
2 x DDR4, up to 64GB, 5100(O.C.)
Graphics Output
1 x HDMI port
Features
1 x M.2 Slot, Realtek GbE LAN
