Product Description

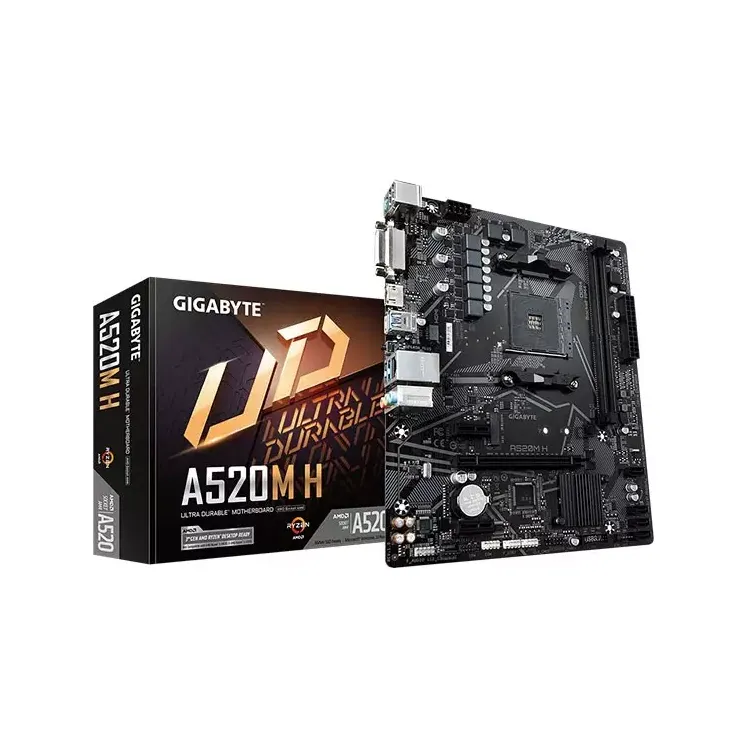

GIGABYTE A520M H DDR4 Motherboard: Power Your Build with Unparalleled Performance
Designed for the modern gamer and content creator, the GIGABYTE A520M H DDR4 motherboard offers an unbeatable combination of power, versatility, and reliability for your AMD AM4 system. With its sleek Micro ATX form factor and cutting-edge features, this board is the perfect foundation for your next PC build.
Key Features and Benefits
Technical Specifications:
- Supports AMD Ryzen 5000 and 3000 series processors
- DDR4 memory support up to 64GB
- High-quality audio capacitors and a dedicated audio processor
- USB 3.2 Gen 2 ports for fast data transfer
- Realtek ALC1220 audio codec for immersive sound
Advanced Technologies
Powering Your Build with GIGABYTE Excellence:
The GIGABYTE A520M H DDR4 motherboard features a range of innovative technologies designed to deliver exceptional performance and reliability. With its robust power delivery system, high-quality audio capacitors, and dedicated audio processor, this board is engineered to provide an immersive gaming and content creation experience.
Part ID: #CAN-01620
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek GbE LAN chip (1 Gbit/100 Mbit)
USB
CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
HDMI
1 x HDMI port
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Slots
CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0
Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset
AMD A520
Graphics
Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB
Warranty
03 Years Warranty
Dimension
24.4cm x 20.5cm
Form Factor
Micro ATX
Supported CPU
AMD Socket AM4, support for: AMD Ryzen 5000 Series Ryzen 5000 G-Series Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
Other Features
H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control
Special Features
Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Software Features
Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility Support for Windows 11 64-bit Support for Windows 10 64-bit
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
External I/O Ports
1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper iTE I/O Controller Chip
Part ID: #CAN-01620
Last Updated: 1 month ago
