Product Description
Upgrade Your Gaming and Productivity Experience

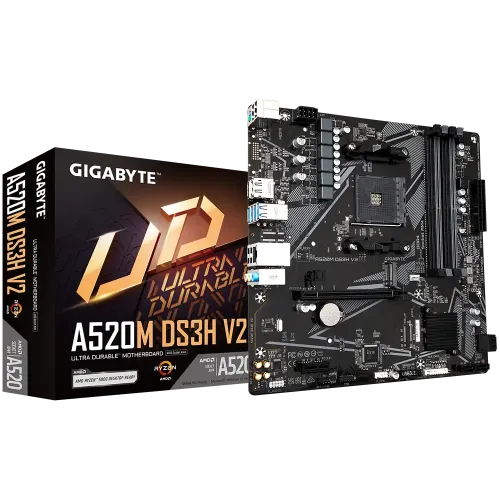

The Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard is the perfect choice for gamers, content creators, and professionals seeking a feature-rich and versatile platform for their PC builds. With its robust capabilities, this motherboard offers an exceptional balance of performance, compatibility, and value.
Key Features and Benefits- Support for AMD Ryzen 5000 Series, Ryzen 4000 G-Series, and Ryzen 3000 Series processors for Socket AM4
- Up to 128 GB of DDR4 RAM with speeds of up to 4733 MHz (OC)
- Integrated graphics support via one DisplayPort and one HDMI connector with resolutions up to 5120x2880 at 60Hz and 4096x2160 at 60Hz
- Realtek Audio CODEC for high-quality sound output with 2/4/5.1/7.1-channel audio
- M.2 connector for PCIe 3.0 x4/x2 SSDs and four SATA 6Gb/s connectors for RAID configurations
The Gigabyte A520M DS3H V2 Motherboard features an Ultra Durable design with anti-sulfur resistors and high-quality capacitors for improved durability and stability. Additionally, it includes Smart Fan 5 technology, which provides effective cooling under heavy workloads with numerous temperature sensors and hybrid fan headers with FAN STOP.
Operating System and CompatibilityThe Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard is completely compatible with Windows 10 and 11 64-bit operating systems, ensuring a stable and dependable foundation for all of your computing requirements.
Part ID: #CAN-00955
Last Updated: 4 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard
|
In Stock | 9,500 | 2 hours ago | |
|
Creatus Computer
Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard
|
In Stock | 9,500 | 2 hours ago | |
|
Sell Tech
Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard
|
In Stock | 9,500 | 2 hours ago | |
|
Ultra Technology
Gigabyte A520M DS3H V2 DDR4 AMD Motherboard
|
In Stock | 10,000 | 2 hours ago | |
|
Skyland BD
Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard
|
In Stock | 10,310 | 2 hours ago | |
|
TechLand BD
Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard
|
Check Stock | 9,500 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
Chipset
AMD A520
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI
CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slots, Supporting PCIe 3.0 x1 mode
M.2 Socket
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Supporting for RAID 0, RAID 1, and RAID 10
Memory
Type
Dual-Channel Memory Architecture
Slots
4 x DDR4 DIMM
Supported Memory
DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
128 GB (32 GB single DIMM capacity)
Graphics
Graphics
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz Supports DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Supports HDMI 2.1 version, HDCP 2.3, and HDR.
Max Shared Memory
Maximum shared memory of 16 GB
Connector & Ports
HDMI
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Display Port (s)
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
USB (s)
CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Supporting for RAID 0, RAID 1, and RAID 10
Audio
Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper Back Panel Connectors: 1 x PS/2 keyboard/mouse port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features
Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install Support for Windows 11 64-bit Support for Windows 10 64-bit
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
A520M DS3H V2
Supported CPU
Ryzen 5000 / 4000 / 3000 G-Series Processors for Socket AM4
Supported RAM
4x DDR4, up to 128GB
Graphics Output
1x Display Port, 1x HDMI
Features
Realtek GbE LAN chip, Ultra Durable PCIe 3.0 x16 Slot
