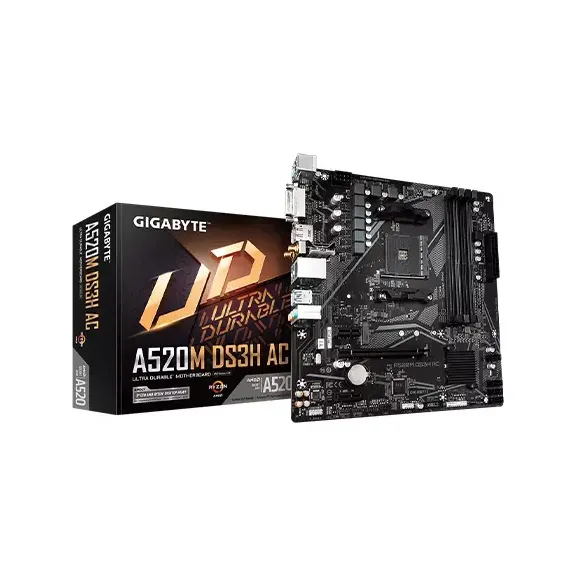

GIGABYTE A520M DS3H AC AM4 AMD 520 ATX Motherboard

Status
In Stock
2 stores
Lowest 10,599 BDT
Price Range 10,599 to 10,800 BDT Save 2%
GIGABYTE A520M DS3H AC AM4 AMD 520 ATX Motherboard

Product Description

GIGABYTE A520M DS3H AC AM4 AMD 520 ATX Motherboard

Upgrade your gaming PC with the GIGABYTE A520M DS3H AC, designed for enthusiasts and professionals seeking a robust, high-performance motherboard for their AMD Ryzen processor-based build. This motherboard offers exceptional features, reliability, and compatibility for a seamless computing experience.

Key Features and Benefits

  • Supports AMD Ryzen AM4 processors, delivering exceptional performance and power efficiency
  • High-quality Realtek ALC1200 audio capacitors for immersive audio experiences
  • High-speed storage capabilities with support for NVMe M.2 SSDs and SATA 6Gb/s
  • Robust power delivery with 4+2 phase power design, ensuring stable and efficient power delivery
  • High-quality components and durable PCB for increased reliability and lifespan

Advanced Technologies

The GIGABYTE A520M DS3H AC motherboard boasts several cutting-edge technologies, including:

Zen 3 Architecture Support

Experience the latest AMD Ryzen processor architecture, delivering enhanced performance, power efficiency, and multi-threading capabilities.

Power Delivery and Cooling

Benefit from the motherboard's robust power delivery system, featuring 4+2 phase power design and high-quality components for efficient power delivery and heat management.

Part ID: #CAN-01559 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer GIGABYTE A520M DS3H AC AM4 AMD 520 ATX Motherboard
In Stock 10,599 5 hours ago
Buy Now
TechLand BD GIGABYTE A520M DS3H AC AM4 AMD 520 ATX Motherboard
In Stock 10,800 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

LAN Realtek GbE LAN chip (1000 Mbit/100 Mbit)
USB 4 x USB 3.2 Gen 1 ports on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
WiFi WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory AMD Ryzen™ 5000 G-series / Ryzen™ 5000 Series/ 3rd Generation AMD Ryzen™ processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset AMD A520
Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Warranty 3 years
Bluetooth BLUETOOTH 4.2
Dimension 24.4cm x 24.4cm
Form Factor Micro ATX Form Factor
Supported CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
External I/O Ports 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 2 x SMA antenna connectors (1T1R) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
Part ID: #CAN-01559 Last Updated: 1 month ago
