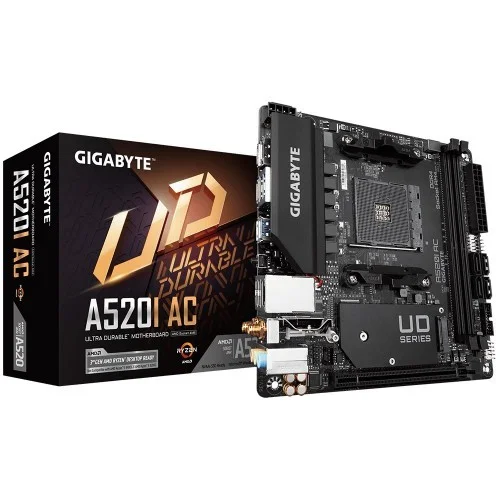

Gigabyte A520I AC AM4 Mini-ITX Motherboard

Status
In Stock
2 stores
Lowest Out of Stock
Price Range Single price listing
Gigabyte A520I AC AM4 Mini-ITX Motherboard

Product Description

Gigabyte A520I AC AM4 Mini-ITX Motherboard: Unleash the Power of Your AMD Ryzen Processor

Designed for PC enthusiasts and builders, the Gigabyte A520I AC AM4 Mini-ITX Motherboard is a high-performance solution for those who demand the best. With its advanced features and robust capabilities, this motherboard is perfect for creating a compact yet powerful gaming PC or home media server.

Key Features and Benefits

Technical Specifications Highlights:

  • Supports AMD Ryzen 5000 Series and 3rd Gen Ryzen processors
  • Direct 6 phases digital CPU power design with 55A DrMOS for high-performance capabilities
  • Ultra-fast NVMe PCIe 3.0 x4 M.2 slot for blazing-fast storage
  • Intel Dual Band 802.11ac WIFI and BT 4.2 for seamless wireless connectivity
  • RGB FUSION 2.0 with Addressable LEDs for customizable lighting

Advanced Technologies and Features

Unlock the Full Potential of Your AMD Ryzen Processor:

The Gigabyte A520I AC AM4 Mini-ITX Motherboard features a range of advanced technologies and features that work together to deliver exceptional performance and capabilities. With its Direct 6 phases digital CPU power design, this motherboard provides clean and stable power to your processor, while the 55A DrMOS ensures that your system remains cool and efficient. Additionally, the Ultra-fast NVMe PCIe 3.0 x4 M.2 slot provides lightning-fast storage speeds, making it perfect for demanding applications and games.

Part ID: #CAN-02000 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer Gigabyte A520I AC AM4 Mini-ITX Motherboard
In Stock Call for Price 4 hours ago
Buy Now
PC House Gigabyte A520I AC AM4 Mini-ITX Motherboard
In Stock Call for Price 3 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD Socket AM4, support for AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
Chipset AMD A520
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

Expansion Slots

PCI Integrated in the CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
M.2 Socket Integrated in the CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support)

Memory

Type DDR4
Slots 2 x DIMM sockets
Supported Memory AMD Ryzen 5000 series Processors/ 3rd Gen AMD Ryzen Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) /4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5300(O.C.)/ 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Extreme Memory Profile (XMP) memory modules
Maximum Memory Up to 64 GB (32 GB single DIMM capacity)

Graphics

Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DisplayPort port, supporting a maximum resolution of 5120 x 2880 @60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 2 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time
Max Shared Memory 16 GB

Connector & Ports

HDMI 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
Display Port (s) 1 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz
USB (s) Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/ 1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Wireless Communication module Intel Wi-Fi AC 3168 WIFI 802.11a/ b/ g/ n/ ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate
Supported Storage Integrated in the CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector 8-pin ATX 12V power connector CPU fan header 2 x system fan headers 1 x addressable LED strip header RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header front panel audio header 1 x speaker header USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

Warranty Information

Manufacturing Warranty 3 Years

Others

Special Features Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Q-Flash Plus Q-Flash Xpress Install
Part ID: #CAN-02000 Last Updated: 1 month ago
