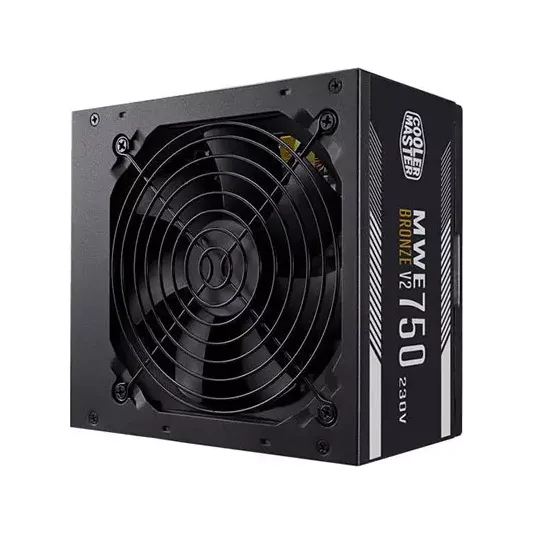

Cooler Master MWE 750W Bronze V2 Power Supply Overview

The Cooler Master MWE 750W Bronze V2 is an ideal choice for PC enthusiasts seeking a reliable and efficient power supply for their mid-tier computing needs. With its simple, no-frills design, this PSU delivers safe and efficient power delivery without the added costs and complexities of advanced features.

Key Features and Benefits

• 80 PLUS Bronze efficiency rating, ensuring minimal power loss and maximum efficiency
• Active PFC (Power Factor Correction) for improved power factor and reduced energy waste
• 120mm HDB fan with temperature-sensitive design for optimal cooling and minimal noise
• Single +12V rail for reliable and consistent power delivery to your system's components
• DC-to-DC + LLC circuit design for efficient and safe power conversion

Advanced Power Delivery Technology

The MWE Bronze V2 features a range of advanced power delivery technologies, including a temperature-sensitive HDB fan, a single +12V rail, and a DC-to-DC + LLC circuit design. These technologies work together to deliver efficient and safe power to your system's components, ensuring optimal performance and reliability.

Specifications and Compatibility

For a comprehensive overview of the MWE Bronze V2's specifications and compatibility, please refer to the detailed specifications section below:

ATX VERSION: ATX 12V V2.5

INPUT VOLTAGE: 200-240Vac

INPUT CURRENT: 10-5A

INPUT FREQUENCY: 50-60Hz

DIMENSIONS (L X W X H): 140 x 150 x 86 mm

FAN SIZE: 120mm

FAN BEARING: HDB

FAN SPEED: 2400 RPM

NOISE LEVEL @ 20%: 12.16 dB

NOISE LEVEL @ 50%: 17.9 dB

NOISE LEVEL @ 100%: 39.8 dBA

EFFICIENCY: 85% Typically

80 PLUS RATING: 80 PLUS Standard 230V EUERP 2014 LOT 3

OPERATING TEMPERATURE: 40°C

POWER GOOD SIGNAL: 100 - 500 ms

HOLD UP TIME: >14ms at 100% Full Load @ 230Vac

MTBF: >100,000 Hours

PROTECTIONS: OVP, OPP, SCP, UVP, OTP

REGULATORY: CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB

ATX 24-PIN CONNECTORS: 1

EPS 4+4 PIN CONNECTORS: 1

EPS 8 PIN CONNECTOR: 1

SATA CONNECTORS: 8

P ERIPHERAL 4-PIN CONNECTORS: 4

PCI-E 6+2 PIN CONNECTORS: 4

MODULAR: Non Modular

WATTAGE: 500 to 750W

SERIE: MWE BRONZE
