Product Description

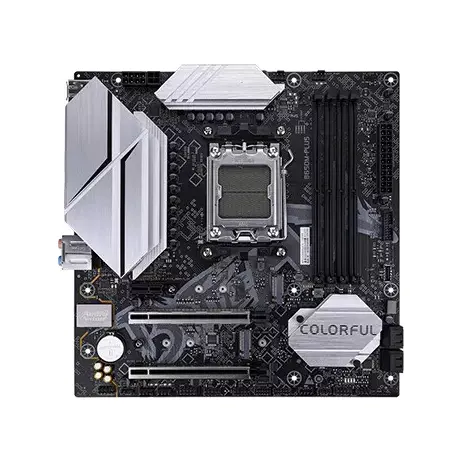

Engineered by Colorful, this motherboard is designed for **AM5** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **13,900 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-01594
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
RTL8125BG 2.5Gbit LAN
BIOS
128M UEFI, support multiple languages
Audio
Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels
Memory
4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory)- Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory- Support Extreme Memory Profile (XMP) memory technology- Support Extended Profiles for Overclocking (EXPO) memory technology
Chipset
AMD B650
Warranty
3 Years
Form Factor
M-ATX245mm x 245 mm
Supported CPU
Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard
Other Features
Power Management: Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Special Features
Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
Supported Storage
2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices- M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)- M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)(* Is it supported PCIe 5.0 is related to the CPU used with the motherboard)
External I/O Ports
1×PCIe 5.0 x16 slot1×PCIe x16 slot (supports PCIe 4.0 x4 specifications)1×PCIe 4.0 x1 slot
Internal I/O Ports
Rear I/O :-4×USB 2.0 interfaces-2×USB 3.2 Gen 1 Type-A interfaces-1×USB 3.2 Gen 2 Type-A interface-1×USB 3.2 Gen 2 Type-C interface-1×DP 1.2 interface, supporting up to 4K 60Hz resolution-1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution-1×2.5G network interface-6×Audio interfaces (audio input/audio output/microphone)-1×BIOS update buttonOn board:-1×CPU fan pin-3×System fan pins-1×water cooling pump pin-2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces-1×USB 3.2 Gen 1 Type-C slot expandable 1 USB 3.2 Gen 1 Type-C interface-2×5V 3-pin ARGB pins-2×12V 4-pin RGB pins-1×Front audio pin-1×Front panel pin-1×Speaker pin-1×Clear CMOS jumper-1×COM port pin-1×BIOS burner pin-1×POST card pin
Part ID: #CAN-01594
Last Updated: 2 days ago
