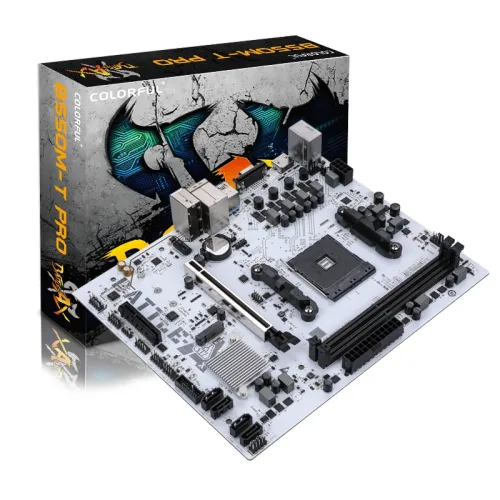

Colorful BATTLE-AX B550M-T PRO V14 AM4 mATX Motherboard

Status
In Stock
2 stores
Lowest 11,400 BDT
Price Range Single price listing
Colorful BATTLE-AX B550M-T PRO V14 AM4 mATX Motherboard

Product Description

Upgrade Your PC with the Colorful BATTLE-AX B550M-T PRO V14 Motherboard

Designed for gamers, content creators, and power users, the Colorful BATTLE-AX B550M-T PRO V14 motherboard offers exceptional performance, reliability, and features to take your AMD AM4-based system to the next level. With its sleek white design and robust capabilities, this motherboard is the perfect choice for those seeking a high-performance motherboard.

Key Features and Benefits

  • Supports AMD Ryzen series processors for exceptional performance and power efficiency
  • High-speed PCIe 4.0 x4 M.2 SSD socket for lightning-fast storage performance
  • Integrated Realtek 2.5G Ethernet connector for high-speed, robust, and reliable wired network connections
  • Four USB 3.2 Gen 1 Type-A ports for fast data transmission and connection for a range of USB devices
  • Supports up to 32GB of DDR4 memory for seamless multitasking and gaming performance

Proprietary Technologies and Performance Enhancements

The Colorful BATTLE-AX B550M-T PRO V14 motherboard features a range of proprietary technologies and performance enhancements, including:

Advanced Cooling Solutions

The motherboard's PCB atomization process has been significantly improved, enhancing heat dissipation and overall performance, and ensuring long-term stability and longevity.

Robust Power Delivery

The motherboard is equipped with six defensive technologies to improve its stability and endurance, protecting against electrical surges, voltage fluctuations, and other potential threats.

Thorough Testing and Quality Assurance

The motherboard has undergone a rigorous testing procedure that includes 200 quality control tests, ensuring that it meets the highest reliability, performance, and quality standards.

Part ID: #CAN-01246 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech Colorful BATTLE-AX B550M-T PRO V14 AM4 mATX Motherboard
In Stock Call for Price 1 week ago
Creatus Computer Colorful BATTLE-AX B550M-T PRO V14 AM4 mATX Motherboard
In Stock 11,400 5 hours ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard
Chipset AMD B450
BIOS 128M UEFI, support multiple languages
Form Factor M-ATX 197mm x 240mm
Audio 5.1-Channel High Definition audio CODEC

Expansion Slots

PCI 1×PCIe 4.0 x16 slot 1×PCIe 3.0 x4 slot

Memory

Type Dual Channel DDR4 Memory Technology
Slots 2 x DIMM
Supported Memory Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory Support Extreme Memory Profile (XMP) memory technology Supports dual channel memory technology
Maximum Memory 32GB

Connector & Ports

HDMI 1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution
LAN Port (s) RTL8125 2.5Gbit LAN
Supported Storage 1 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4/SATA, CPU channel)
Internal I/O Ports Rear I/O : -2×USB 2.0 interfaces -4×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution -1×VGA interface -1×PS/2 interface -1×2.5G network interface -3×audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -1×system fan pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×12V 4-pin RGB pin -1×Front audio pin -1×front panel pin -1×speaker pin -1×Clear CMOS jumper -1×COM port pin -1×BIOS burner pin -1×Debug light pin -1×USB live control jumper

Warranty Information

Manufacturing Warranty 03 years

Key Features

Model BATTLE-AX B550M-T PRO V14
Supported CPU AMD Ryzen processors are compatible with the AM4 motherboard socket
Supported Memory 2 x DDR4 3600(OC) Max. 32GB
Graphics Output 1 x HDMI, 1×HDMI 1.4
Features RTL8125 2.5Gbit LAN
Part ID: #CAN-01246 Last Updated: 1 month ago
