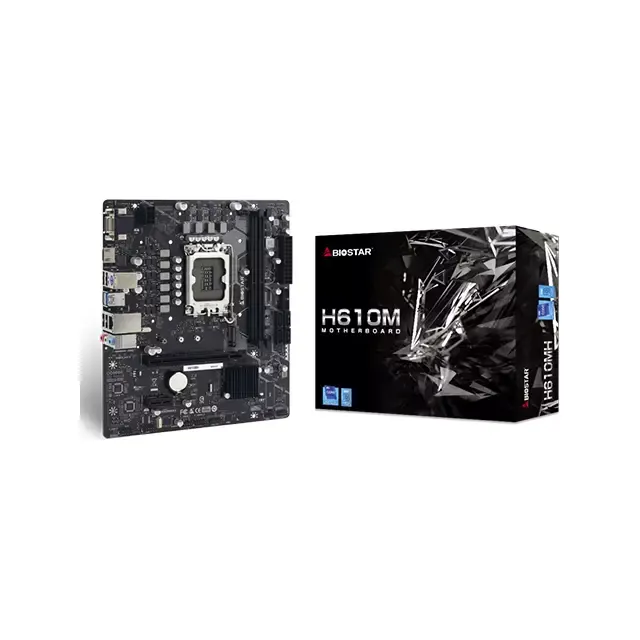

Biostar H610MS 12th/13th/14th Gen micro atx motherboardBiostar H610MS motherboard is a micro ATX motherboard designed to support Intel's 12th, 13th, and 14th Generation Core™ i9, i7, i5, and i3 processors. It features the Intel H610 chipset, providing a solid foundation for building a versatile and efficient PC. This motherboard is suitable for various applications, from gaming to productivity, thanks to its robust set of features. The Biostar H610MS supports dual-channel DDR4 memory with speeds of 3200/2933/2666/2400/2133/1866 MHz. It has two DDR4 DIMM memory slots, allowing a maximum memory capacity of up to 64 GB. Each DIMM slot supports non-ECC memory modules of 4/8/16/32GB, and the motherboard is compatible with Intel Extreme Memory Profile (XMP) memory modules, enabling easier overclocking. Graphics capabilities depend on the CPU model, with support for DirectX 12 and HDCP. For storage, the motherboard provides one M.2 socket and four SATA III ports. The M.2 socket supports type 2240/2260/2280 SSD modules, operating at PCIe 3.0 x 4 speeds, which can reach data transfer rates of up to 32Gb/s. The four SATA III connectors offer a 6Gb/s data transfer rate, providing ample storage options for various needs. Networking is handled by the Realtek RTL8111H LAN controller, supporting 10/100/1000 Mb/s speeds with auto-negotiation and half/full duplex capability. The audio is powered by the ALC897 codec, offering 7.1-channel high-definition audio for an immersive sound experience. The Biostar H610MS includes a variety of USB ports: three USB 3.2 Gen1 ports (one on the rear I/O and two via internal headers) and eight USB 2.0 ports (four on the rear I/O and four via internal headers). It also features expansion slots for adding additional components. It has one PCIe 4.0 x16 slot, suitable for a high-performance graphics card, and one PCIe 3.0 x1 slot for other expansion cards. The rear I/O panel includes a PS/2 keyboard/mouse port, HDMI, DP port, one USB 3.2 Gen1 port, four USB 2.0 ports, a LAN port, and three audio jacks. Internal connectors provide four SATA III connectors, USB headers, power connectors, fan connectors, and various other headers for additional functionality like TPM and chassis intrusion detection. The motherboard supports hardware monitoring, including CPU and system temperature monitoring, and smart/manual CPU fan control. It has a micro ATX form factor with dimensions of 21.6 cm x 22.8 cm, making it suitable for various PC case sizes. The motherboard is compatible with Windows 10 (64-bit) and Windows 11 (64-bit) operating systems. Included accessories are two SATA cables, an I/O shield, a DVD driver, a quick guide, and an M.2 anchor for securing M.2 SSDs. These accessories ensure that users have everything they need to set up and utilize the motherboard effectively...
