Product Description

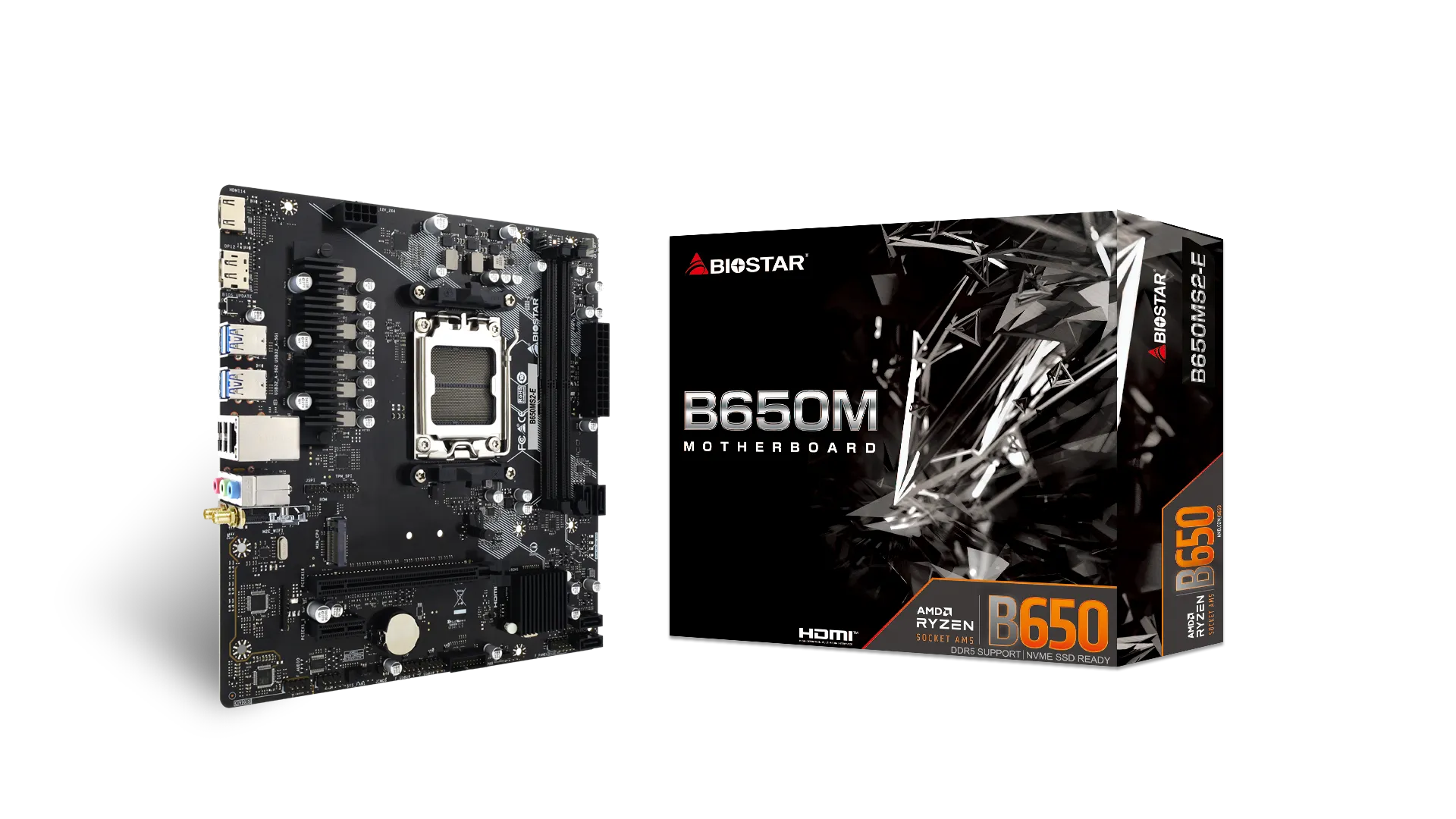

Engineered by Biostar, this motherboard is designed for **AM5** socket processors, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **10,800 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01847
Last Updated: 1 week ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
Chipset
AMD B650
CPU SUPPORT
Socket AM5 support AMD® Ryzen&trade 7000 / 8000 / 9000 series Processors Support for future AMD Ryzen processors with BIOS * Please refer to www.biostar.com.tw for CPU support list.
MEMORY
AMD Ryzen 7000 / 8000 / 9000 series Processors: Supports Dual Channel DDR5 6000+(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 4800 2 x DDR5 DIMM Memory Slot, Max. Supports up to 96 GB Memory Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module * Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO
By CPU model Supports DX12 Supports HDCP
STORAGE
Total support 1 x M.2 Socket and 4 x SATA (6Gb/s) ports AMD Ryzen 7000 / 8000 / 9000 Series Processors 1 x M.2 (Key M) Socket (M2M_CPU): Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD AMD B650 Chipset 4 x SATA III Connector (6Gb/s): Supports AHCI & RAID 0, 1, 10 * Specifications vary by CPU types
LAN
Realtek RTL8125BG 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC
ALC897 7.1 Channels, High Definition Audio, Hi-Fi
USB
6 x USB 3.2 Gen1 port (4 on rear I/Os and 2 via internal headers) 6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT
AMD Ryzen 7000 / 8000 / 9000 Series Processors 1 x PCIe 4.0 x16 Slot (x16 or x8/x8 mode) AMD B650 Chipset 1 x PCIe 3.0 x1 Slot * Specifications vary by CPU types
REAR I/O
1 x SMART BIOS Button 1 x HDMI Port (HDMI1.4) 1 x DP Port (DP1.2) 4 x USB 3.2 (Gen1) Type-A Port 2 x USB 2.0 Type-A Port 1 x 2.5 Gigabit LAN port 3 x Audio Jack 2 x WiFi Antenna Port
INTERNAL I/O
4 x SATA III Connector (6Gb/s) 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x Fan Connector 1 x CPU water cooling connector (CPU_OPT) 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module * M.2 (E Key) Wi-Fi card is not provided
H/W MONITORING
CPU / Temperature Monitoring CPU / Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring
DIMENSION
Micro ATX Form Factor Dimension: 22.1cm x 23.5cm ( W x L )
OS SUPPORT
Supports Windows 10(64bit)/ 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE
BullGuard
ACCESSORIES
2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 2 x M.2 Anchor 2 x WiFi antenna accessories
Part ID: #CAN-01847
Last Updated: 1 week ago
Biostar B650MS2-E Socket AM5 Motherboard is a powerful and versatile platform designed for modern computing needs. Supporting the latest AMD Ryzen™ 7000, 8000, and 9000 series processors, it ensures compatibility with future updates via BIOS upgrades, making it a forward-looking investment. Its AMD B650 chipset delivers robust performance for gaming, content creation, and multitasking.This motherboard supports dual-channel DDR5 memory with speeds up to 6000MHz (OC), providing exceptional bandwidth and responsiveness. With two DIMM slots, it accommodates up to 96GB of non-ECC memory, ensuring reliable and fast performance for demanding applications.In terms of storage, the Biostar B650MS2-E offers a M.2 Key M socket for NVMe SSDs, delivering PCIe 4.0 x4 speeds of up to 64Gbps for lightning-fast data access. It also features four SATA III connectors for additional storage options, supporting AHCI and RAID 0, 1, and 10 configurations.The integrated Realtek RTL8125BG 2.5Gbps LAN ensures ultra-fast and stable internet connectivity, while the ALC897 audio codec provides rich, high-definition audio output for an immersive experience. USB connectivity is extensive, with six USB 3.2 Gen1 ports and six USB 2.0 ports for peripherals and devices.Expansion is easy with one PCIe 4.0 x16 slot for a graphics card and one PCIe 3.0 x1 slot for additional cards. It supports both HDMI and DisplayPort for flexible display options, and the inclusion of WiFi antenna ports ensures seamless wireless connectivity when paired with an optional module.With its Micro ATX form factor, the Biostar B650MS2-E is compact yet packed with features, including advanced cooling options like a CPU water cooling connector. Backed by a robust accessory package and compatibility with Windows 10 and 11, this motherboard is an excellent choice for building or upgrading your PC.FeaturesProcessor Support: Compatible with AMD Ryzen™ 7000, 8000, and 9000 series processors, ensuring future-ready performance.Memory: Supports dual-channel DDR5 memory up to 6000MHz (OC), with a maximum capacity of 96GB.Storage: Features one M.2 Key M slot (PCIe 4.0 x4) for ultra-fast NVMe SSDs and four SATA III ports for additional drives.Networking: Integrated Realtek RTL8125BG 2.5Gbps LAN for high-speed internet connectivity.Audio: Equipped with ALC897 codec for 7.1-channel HD audio, delivering a rich sound experience.Connectivity: Offers multiple USB ports (6 USB 3.2 Gen1 and 6 USB 2.0), HDMI, and DisplayPort outputs.Expansion Slots: Includes a PCIe 4.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for additional peripherals.Compact Design: Micro ATX form factor fits into a wide range of cases while providing robust functionality...
