Product Description
Engineered by Biostar, this motherboard is designed for **AM4** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **7,500 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-01789
Last Updated: 1 week ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
USB
2 × USB 2.0 headers, 1 × USB 3.2 Gen1 header, 1 × USB 3.2 Gen2 Type-C header
Audio
Hi-Fi Audio Front Output
Codec
Realtek ALC897
Power
1 × 24-Pin ATX Power, 1 × 8-Pin CPU Power
Slots
2 × DIMM
Speed
10 / 100 / 1000 Mbps (Auto-Negotiation)
Socket
AMD Socket AM4
Chipset
AMD A520
Cooling
1 × CPU Fan, 1 × System Fan
Storage
4 × SATA III (6 Gb/s)
Channels
7.1-Channel HD Audio
Duration
3 Years
Features
Half/Full Duplex Capability
API Support
DirectX 12, HDCP
Audio Codec
Realtek ALC897, 7.1-Channel HD Audio, Hi-Fi (Front)
Audio Jacks
3 × Audio Jacks
Form Factor
Micro ATX (23.5 cm × 20.8 cm)
Front Audio
Hi-Fi Audio Output
Front Panel
1 × Front Panel Header, 1 × Front Audio Header
Memory Type
DDR4
A520 Chipset
Standard Expansion Slots
Architecture
Dual Channel
Max Capacity
64 GB
RAID Support
RAID 0 / 1 / 10
Miscellaneous
1 × Internal Speaker Header, 1 × Clear CMOS, 1 × COM Port, 1 × TPM Header
Display Output
1 × HDMI Port
Future Support
Compatible with future AMD Ryzen processors via BIOS update
LAN Controller
Realtek RTL8111H
Graphics Source
Integrated GPU (depends on CPU model)
Software Bundle
BullGuard Internet Security
Bundled Software
BullGuard Internet Security
Internal Headers
Supports front panel expansion
Supported Speeds
4th Gen Ryzen (Vermeer): 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 4th Gen Ryzen APU (Cezanne): 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 3rd Gen Ryzen (Matisse): 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 3rd Gen Ryzen APU (Renoir): 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133
M.2 Slot (M2M_CPU)
Type 2242 / 2260 / 2280 SSDs Supports PCIe 3.0 ×4 (32 Gb/s) & SATA III (6 Gb/s)
SATA Ports (Chipset)
4 × SATA III (6 Gb/s), Supports AHCI & RAID 0 / 1 / 10
Supported Processors
AMD Ryzen™ 3rd Gen (Matisse / Renoir) and 4th Gen (Vermeer / Cezanne)
Total Storage Interface
1 × M.2 Socket + 4 × SATA III (6 Gb/s) Ports
Ryzen 5000 / 3000 Series CPUs
Operates in ×16 or ×4/×4/×4/×4 mode
Ryzen 5000G / 4000G Series APUs
Operates in ×16 or ×8/×4/×4 mode
Part ID: #CAN-01789
Last Updated: 1 week ago

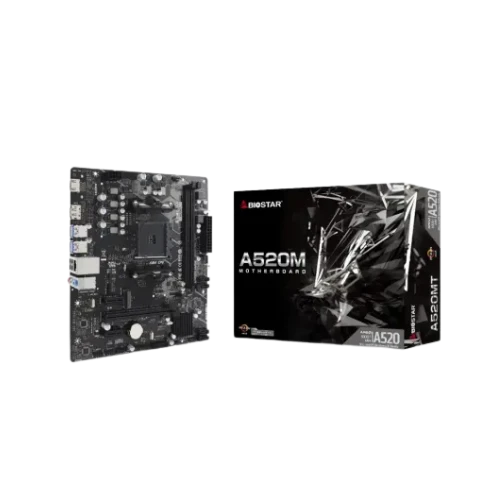

BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard The BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard is a high-performance motherboard designed to meet the demands of modern computing. With its Socket AM4 support, this motherboard is compatible with AMD Ryzen 3rd Gen (Matisse/ Renoir) and Ryzen 4th Gen (Vermeer/ Cezanne) processors, ensuring optimal performance and efficiency. Featuring the AMD A520 single-chip architecture, this motherboard offers a seamless and reliable computing experience. The 2-DIMM DDR4 memory support allows for a maximum capacity of up to 64 GB, enabling smooth multitasking and efficient data processing. Equipped with Realtek Gigabit LAN, this Motherboard ensures fast and stable internet connectivity, perfect for online gaming, streaming, and downloading large files. The inclusion of Front USB 3.2 Gen2 Type-C provides convenient and high-speed data transfer capabilities, allowing you to connect and transfer files effortlessly. With M.2 (32Gb/s) support, this motherboard offers lightning-fast storage options, ensuring quick access to your files and applications. Additionally, the HDMI 4K resolution support allows for stunning visuals and immersive viewing experiences, making it ideal for multimedia enthusiasts and gamers. The BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard is a reliable and feature-packed motherboard that delivers exceptional performance and versatility. Whether you're a professional seeking a powerful computing solution or a gamer looking for an immersive gaming experience, this motherboard is sure to meet and exceed your expectations.see more
