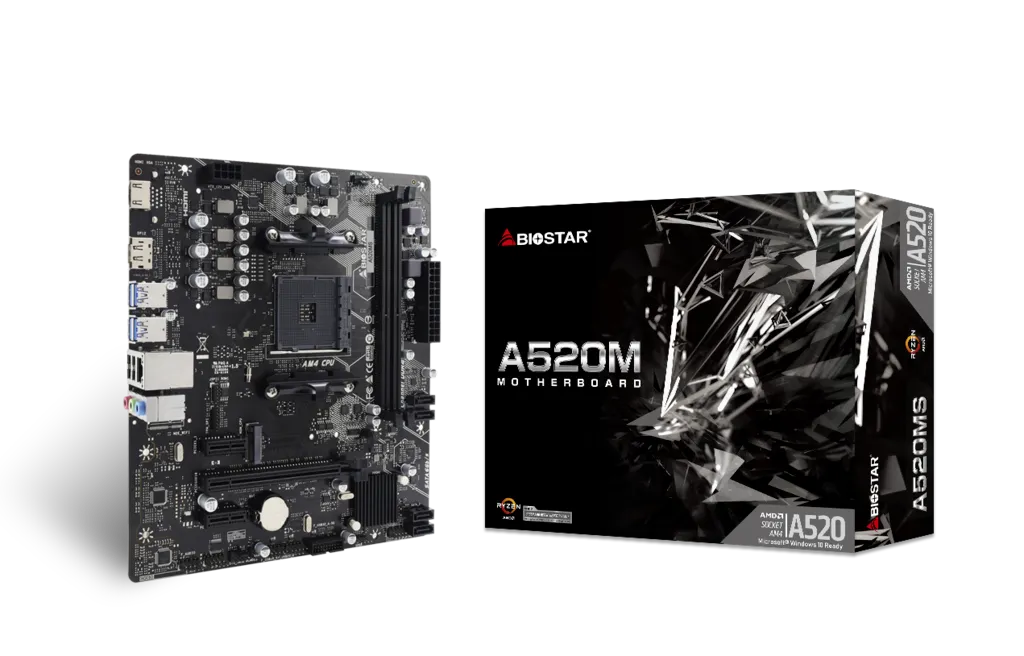

Biostar A520MS AMD Ryzen mATX Motherboard

Status
In Stock
2 stores
Lowest 7,200 BDT
Price Range 7,200 to 7,400 BDT Save 3%
Biostar A520MS AMD Ryzen mATX Motherboard

Product Description

The Biostar A520MS AMD Ryzen mATX Motherboard is a feature-packed solution for PC enthusiasts and builders, offering unparalleled performance, flexibility, and connectivity for a wide range of applications. Designed to accommodate both 3rd and 4th Gen AMD Ryzen processors, this motherboard ensures compatibility with the latest and future AMD offerings, making it the perfect choice for those seeking a reliable and upgradeable foundation for their next PC build or upgrade.

Key Features and Benefits

  • Support for a wide range of AMD Ryzen processors, including 3rd and 4th Gen Ryzen CPUs and APUs
  • Up to 64 GB of DDR4 memory support for seamless multitasking and efficient data processing
  • Comprehensive storage options, including one M.2 socket and four SATA III ports for high-speed NVMe SSDs and traditional HDDs or SSDs
  • Reliable Gigabit Ethernet connectivity with Realtek RTL8111H LAN port and immersive 7.1 channel HD audio with ALC897 audio codec
  • Extensive USB connectivity, including six USB 3.2 (Gen1) ports and six USB 2.0 ports

Advanced Features and Proprietary Technologies

The Biostar A520MS motherboard boasts a range of advanced features and proprietary technologies, including:

  • Hardware Monitoring: Comprehensive system monitoring capabilities, including CPU and system temperature monitoring, fan speed monitoring, and CPU/DDR voltage monitoring
  • Expansion Slots: One PCIe 3.0 x16 slot for graphics cards and two PCIe 3.0 x1 slots for additional expansion cards
  • High-Quality Audio: Immersive 7.1 channel HD audio with ALC897 audio codec
  • Reliable Networking: Realtek RTL8111H LAN port for reliable Gigabit Ethernet connectivity

System Specifications

The Biostar A520MS motherboard is designed in a Micro ATX form factor with dimensions of 20.8cm x 23.5cm (W x L), making it a compact yet feature-packed solution for smaller PC builds. It supports Windows 10 (64-bit) and Windows 11 (64-bit) operating systems and comes bundled with essential accessories, including SATA cables, an I/O shield, DVD driver, quick guide, and M.2 anchor.

Part ID: #CAN-01848 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Ultra Technology Biostar A520MS AMD Ryzen mATX Motherboard
In Stock 7,200 4 hours ago
Buy Now
Binary Logic Biostar A520MS AMD Ryzen mATX Motherboard
In Stock 7,400 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

Chipset AMD A520MS
CPU SUPPORT Socket AM4 support AMD Ryzen&amptrade 3rd Gen (Matisse/ Renoir) and Ryzen&amptrade 4th Gen (Vermeer/ Cezanne) processors Support for future AMD Ryzen processors with BIOS * Please refer to www.biostar.com.tw for CPU support list.
MEMORY 4th Gen AMD Ryzen Processors (Vermeer CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133 4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module * Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model Supports DX12 Supports HDCP
STORAGE Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports AMD A520 Chipset 4 x SATA III Connector (6Gb/s) : Supports AHCI &amp RAID 0, 1, 10 AMD Ryzen 5000/5000 G/4000 G/3000 Processors 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 3.0 x 4 (32Gb/s) - NVMe SSD Supports SATA III (6.0Gb/s) SSD
LAN Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC897 7.1 Channels, High Definition Audio, Hi-Fi (Front)
USB 6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal headers) 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT AMD Ryzen 5000/3000 Processors 1 x PCIe 3.0 x16 Slot (x16 or x4/x4/x4/x4 mode) or AMD Ryzen 5000 G/4000 G Processors 1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 Slot * According to different CPUs will have different speeds.
REAR I/O 1 x DP Port 1 x HDMI Port 1 x LAN port 4 x USB 3.2 (Gen1) Ports 2 x USB 2.0 Ports 3 x Audio Jack
INTERNAL I/O 4 x SATA III (6.0Gb/s) Connectors 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header
H/W MONITORING CPU / Temperature Monitoring CPU / Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 20.8cm x 23.5cm ( W x L )
OS SUPPORT Supports Windows 10(64bit)/ 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE BullGuard
ACCESSORIES 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 1 x M.2 Anchor
Part ID: #CAN-01848 Last Updated: 1 month ago
