Product Description

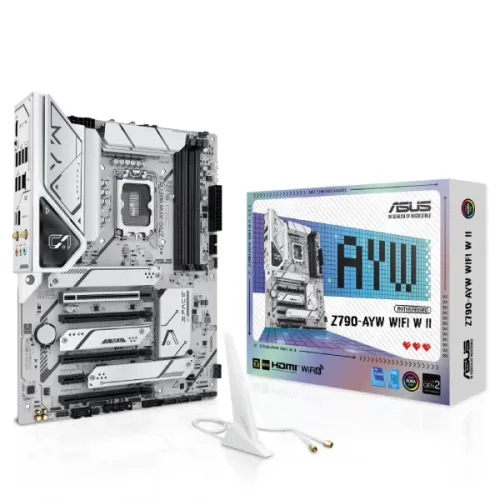

Unlock Unmatched Performance with the ASUS Z790-AYW WIFI W II Motherboard
Designed for enthusiasts and power users, the ASUS Z790-AYW WIFI W II motherboard is a cutting-edge platform that unleashes the full potential of Intel's 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron CPUs. With its robust feature set and premium build quality, this motherboard offers an unparalleled level of performance, customization, and reliability for even the most demanding PC builds.
Exceptional Performance and Features
- Supports up to 192GB of DDR5 memory at speeds of up to 8000MHz (OC)
- Features a PCIe 5.0 x16 slot and multiple PCIe 4.0 and 3.0 slots for advanced graphics and peripherals
- Includes three M.2 slots and four SATA 6Gb/s connectors for extensive storage options and RAID configurations
- Equipped with Realtek 2.5Gb Ethernet and ASUS LANGuard protection for fast and reliable networking
- Integrates Wi-Fi 6 and Bluetooth 5.3 for high-speed wireless communication and connectivity
ASUS Exclusive Technologies and Innovations
The ASUS Z790-AYW WIFI W II motherboard boasts a range of proprietary technologies and innovations that enhance its performance, cooling, and overall user experience. These include:
- ASUS 5X PROTECTION III for robust power delivery and protection
- OptiMem II for improved memory reliability and performance
- Aura Sync for customizable RGB lighting
- Q-Latch, Q-DIMM, and Q-LED for easy M.2 drive installation and improved aesthetics
Part ID: #CAN-01386
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Ultra Technology
ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard
|
In Stock | 38,300 | 5 hours ago | |
|
PCB Store
ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard
|
In Stock | 38,400 | 5 hours ago | |
|
Skyland BD
ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard
|
In Stock | 38,500 | 4 hours ago | |
|
TechLand BD
ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard
|
In Stock | 39,000 | 5 hours ago | |
|
Global Brand PLC
ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard
|
In Stock | 39,000 | 5 hours ago | |
|
Sell Tech
ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard
|
Check Stock | 15,500 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel Z790 Chipset
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI
Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot
M.2 Socket
Total supports 3 x M.2 slots Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
Memory
Type
DDR5
Slots
4 x DIMM slots
Supported Memory
8000+ OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module OptiMem II
Maximum Memory
192GB
Graphics
Graphics
1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1
Connector & Ports
HDMI
1 x HDMI
USB (s)
Rear USB (Total 8 ports) 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB_E1 port, USB_E2 port and USB_E6 port share the bandwidth. USB_E3 port, USB_E4 port, USB_E7 port and USB_E8 port share the bandwidth
LAN Port (s)
1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module
Wi-Fi 6 (802.11 ax) Supports 2.4/5GHz frequency band Bluetooth v5.3
Supported Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Audio
3 x audio jacks
Internal I/O Ports
Back Panel I/O Ports 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin Front Panel System header 1 x Thunderbolt (USB4) Header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - M.2 heatsinks - VRM heatsinks design ASUS EZ DIY - BIOS FlashBack button - ProCool - Pre-mounted I/O shield Aura Sync - Addressable RGB Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation ASUS DriverHub AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
Z790-AYW WIFI W II
Supported CPU
14th, 13th & 12th Gen Processors (LGA1700)
Supported RAM
4 x DIMM, Max. 192GB, DDR5 8000+(OC)
Graphics Output
1 x HDMI
Features
Realtek 2.5Gb Ethernet and Wi-Fi 6
Part ID: #CAN-01386
Last Updated: 1 month ago
