Status
In Stock
7 stores
Lowest Deal
42,999 BDT
Best Deal
Price Range
Single price listing
Product Description

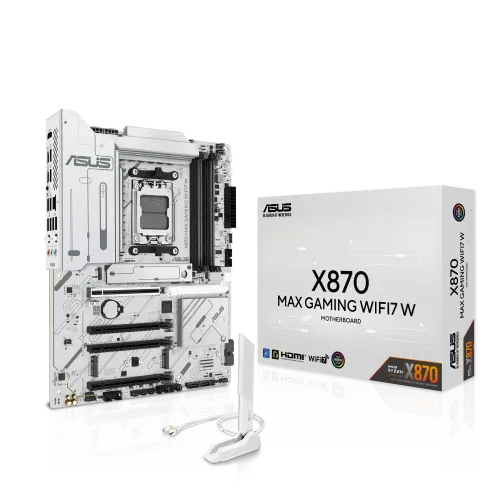

Unlock Unparalleled Performance with the ASUS X870 MAX GAMING WIFI7 W Motherboard
Designed for elite gamers and creators, the ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard is a powerhouse platform that unleashes the full potential of AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors. With cutting-edge features and advanced technologies, this motherboard is the ultimate choice for those seeking unparalleled performance and reliability.
Key Features and Benefits
- Supports up to 256GB of DDR5 RAM with overclockable speeds of 8000+ MT/s, delivering exceptional memory performance and capacity.
- Multiple Expansion Options with one PCIe 5.0 x16 slot, additional PCIe 4.0 and 3.0 slots, and three M.2 slots with PCIe 5.0 and 4.0 interface.
- Enhanced Connectivity with 2 x USB4 (40Gbps) ports, 10 rear USB ports, 7 front USB ports, and Realtek 2.5Gb Ethernet.
- Advanced Audio Capabilities with Realtek 7.1 Surround Sound High Definition Audio, offering jack detection, multi-streaming, and 24-bit/192kHz quality.
- Wireless Features including Wi-Fi 6 (802.11ax) and Bluetooth 5.2, ensuring seamless connectivity and data transfer.
Proprietary Technologies and Features
ASUS 5X PROTECTION III ensures system durability with digital power design, overvoltage protection, and safe slot technology. The motherboard also features a flexible M.2 heatsink, VRM heatsink design, and Aura Sync RGB for a visually stunning experience.
Additional Features include ASUS Q-Design, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, and extensive internal I/O including multiple fan headers, RGB Gen 2 headers, TPM, S/PDIF, and COM ports.
Part ID: #CAN-01152
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard
|
In Stock | 42,499 | 4 hours ago | |
|
TechLand BD
ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard
|
In Stock | 43,500 | 4 hours ago | |
|
Ultra Technology
Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard
|
In Stock | 44,000 | 4 hours ago | |
|
Skyland BD
Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard
|
In Stock | 44,000 | 3 hours ago | |
|
PCB Store
ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard
|
In Stock | 44,300 | 4 hours ago | |
|
Star Tech
Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard
|
In Stock | 44,500 | 1 week ago | |
|
Global Brand PLC
ASUS X870 MAX GAMING WIFI7 W AM5 ATX Gaming Motherboard
|
In Stock | 44,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD X870 Chipset
BIOS
256 Mb Flash ROM, UEFI AMI BIOSc
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode)
M.2 Socket
MD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP)
Maximum Memory
256GB
Graphics
Graphics
1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display outputs * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. *** VGA resolution support depends on processors' or graphic cards' resolution.
Connector & Ports
HDMI
1x HDMI 2.1
USB (s)
Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A
LAN Port (s)
1 x Realtek 2.5Gb Ethernet
Wireless Communication module
Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 * Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
Supported Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. The M.2_2 slot will be disabled when either of the two USB4® (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required. * The PCIEX16(G3) slot shares bandwidth with the SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when the PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required. ** Specifications vary by CPU types.
RAID
AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Internal I/O Ports
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1 pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
X870 MAX GAMING WIFI7 W
Supported CPU
Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket
Supported Memory
4 x DIMM, Max. 256GB, DDR5 Up to 8000+MT/s(OC)
Graphics Output
1 x HDMI port, 2x USB 4 (Type-C up to 40Gbps Data Transfer)
Features
Realtek 2.5Gb Ethernet, Realtek 7.1 High Definition Surround Sound
Part ID: #CAN-01152
Last Updated: 1 month ago
