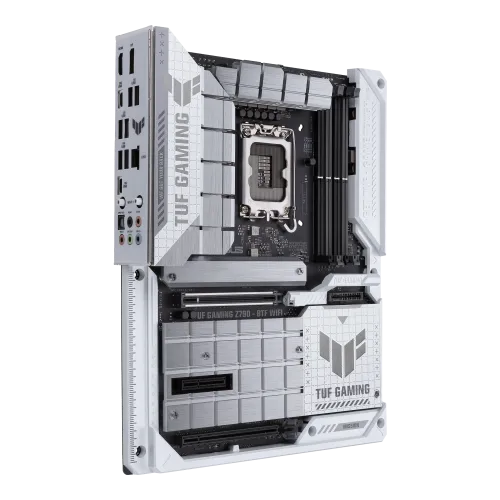

ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard

Status
In Stock
2 stores
Lowest 52,000 BDT
Price Range Single price listing
ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard

Product Description

Unleash the Power of Your Gaming PC with the ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard

The ASUS TUF GAMING Z790-BTF WIFI ATX motherboard is designed for gamers and enthusiasts who demand the best performance, features, and durability. With its robust design and cutting-edge technologies, this motherboard is the perfect choice for building a high-performance gaming PC.

Key Features and Performance Highlights
  • Supports 14th, 13th, and 12th Gen Intel processors (LGA1700) and up to 4x DDR5 RAM with a maximum capacity of 192GB and speeds up to 7200(O.C.)
  • Delivers up to 600 watts for BTF graphics cards through a high-power graphics card slot
  • Includes 1x HDMI and 1x DisplayPort for high-resolution graphics output
  • Features Intel 2.5Gb Ethernet and Intel Wi-Fi 7 for robust and high-speed connectivity options
  • Equipped with 4x M.2 slots and 4x SATA 6Gb/s ports for ample storage options
Advanced Technologies and Features

The ASUS TUF GAMING Z790-BTF WIFI ATX motherboard boasts a range of advanced technologies and features, including:

DIGI+ VRM and TUF PROTECTION - Digital power design with DrMOS for efficient power delivery, and overvoltage protection for safe operation

ASUS Q-Design - A range of innovative features designed to simplify PC building and maintenance, including M.2 Q-Latch and Q-Antenna

ASUS Thermal Solution - Advanced cooling technologies, including M.2 heatsink and VRM heatsink design, to keep your system running cool and stable

ASUS EZ DIY - A range of tools and features designed to make PC building and maintenance easier, including CPU Socket lever protector and ProCool

Part ID: #CAN-01404 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
TechLand BD ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard
Check Stock 52,000 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset Intel Z790 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Dedicated audio PCB layers - Audio Cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Expansion Slots

PCI Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot
M.2 Socket Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Maximum Memory 192GB

Graphics

Graphics 1 x DisplayPort 1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on the processors' or graphic cards' resolution.

Connector & Ports

HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module Intel Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate. Bluetooth v5.4
Supported Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Rear optical S/PDIF out port - Dedicated audio PCB layers - Audio Cover - Unique de-pop circuit
Internal I/O Ports Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 1 x Graphics Card High-Power slot 1 x 12V-2X6 Auxiliary Power connector 3 x 8-pin PCIe Power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 20-3 pin System Panel header with chassis intrusion function 1 x Thunderbolt (USB4) header

Others

Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner MyASUS TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey

Warranty Information

Manufacturing Warranty 3 years warranty

Key Features

Model TUF GAMING Z790-BTF WIFI
Supported CPU 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM 4x DDR5, Max 192GB 7200(O.C.)
Graphics Output 1x HDMI, 1x DisplayPort
Features 1 x Intel 2.5Gb Ethernet, Intel Wi-Fi 7
Part ID: #CAN-01404 Last Updated: 1 month ago
