Product Description

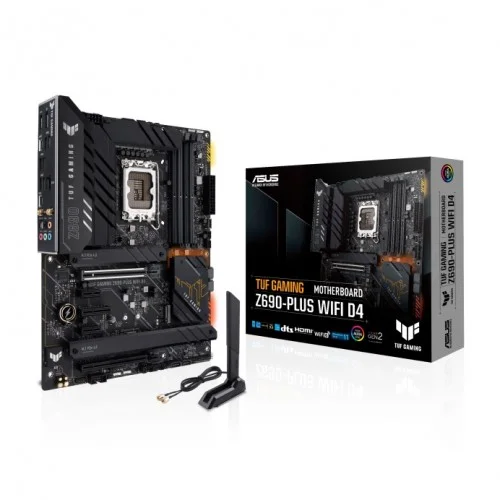

Unleash Your Gaming Potential with the ASUS TUF Gaming Z690-Plus WIFI D4 Motherboard
The ASUS TUF Gaming Z690-Plus WIFI D4 motherboard is designed for gamers and enthusiasts who demand top-notch performance and reliability. With its cutting-edge features and robust build quality, this motherboard is the perfect choice for building a high-performance gaming PC or a content creation workstation.
Key Features and BenefitsThe ASUS TUF Gaming Z690-Plus WIFI D4 motherboard boasts an impressive array of features that make it stand out from the competition. Here are some of the key highlights:
- PCIe 5.0 and USB 3.2 Gen 2x2 Support: Enjoy faster storage and transfer speeds with PCIe 5.0 and USB 3.2 Gen 2x2 support.
- Intel 12th Gen Core Processor Support: Take advantage of the latest Intel 12th Gen Core processor technology for unparalleled performance and efficiency.
- 4 x M.2 Slots and 4 x SATA 6Gb/s Ports: Enjoy flexible storage options with 4 x M.2 slots and 4 x SATA 6Gb/s ports.
- Wi-Fi 6 and Intel 2.5Gb Ethernet: Stay connected with the latest Wi-Fi 6 and Intel 2.5Gb Ethernet technology.
- ASUS TUF PROTECTION and ASUS Q-Design: Enjoy robust protection and ease of use with ASUS TUF PROTECTION and ASUS Q-Design features.
The ASUS TUF Gaming Z690-Plus WIFI D4 motherboard also features several proprietary technologies and features that set it apart from the competition.
ASUS TUF PROTECTION provides robust protection against power surges, overvoltage, and overheating. This includes DIGI+ VRM, Enhanced DRAM Overcurrent Protection, ESD Guards, TUF LANGuard, Overvoltage Protection, Safeslot, and Stainless-Steel Back I/O.
ASUS Q-Design makes it easy to install and configure your system with features like M.2 Q-Latch, Q-DIMM, Q-LED, and Q-Slot.
Part ID: #CAN-01996
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
Asus TUF Gaming Z690-Plus WIFI D4 12th Gen ATX Motherboard
|
In Stock | Call for Price | 5 hours ago | |
|
Nexus Computer
ASUS TUF GAMING Z690-PLUS WIFI D4 Motherboard
|
In Stock | 30,400 | 4 hours ago | |
|
Sell Tech
Asus TUF Gaming Z690-Plus WIFI D4 12th Gen ATX Motherboard
|
Check Stock | Call for Price | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Z690
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX 30.5cm x 24.4cm
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover
Expansion Slots
PCI
Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z690 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x4 slot 2 x PCIe 3.0 x1 slots
M.2 Socket
Supports 4 x M.2 slots
Memory
Type
DDR4
Slots
4 x DIMM
Supported Memory
5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
128GB
Graphics
Graphics
1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) VGA resolution support depends on processors' or graphic cards' resolution.
Connector & Ports
HDMI
1 x DisplayPort
Display Port (s)
1 x HDMI port
USB (s)
Rear USB:Total 8 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C)Front USB:Total 7 ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)
1 x Intel 2.5Gb Ethernet TUF LANGuard
Wireless Communication module
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Audio
5 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connectorStorage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header
Warranty Information
Manufacturing Warranty
3 years
Others
Special Features
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Part ID: #CAN-01996
Last Updated: 1 month ago
