Status
In Stock
4 listings tracked
Lowest Deal
53,500
Best Deal
Price Range
Single price listing
Product Description

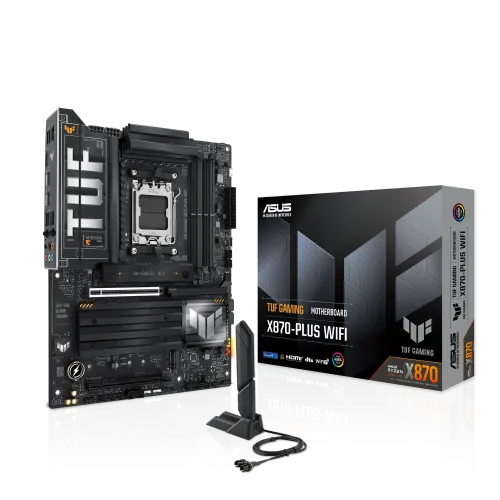

Engineered by ASUS, this motherboard is designed for **AM5** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **53,500 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01163
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
Asus TUF GAMING X870-PLUS WIFI DDR5 AMD AM5 ATX Motherboard
|
In Stock | 53,000 | 2 hours ago | |
|
Skyland BD
Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard
|
In Stock | 53,000 | 2 hours ago | |
|
Star Tech
Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard
|
In Stock | 53,500 | 2 hours ago | |
|
PCB Store
Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard
|
Check Stock | 54,000 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
Chipset
AMD X870 Chipset
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback
Expansion Slots
PCI
AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode)** AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*** AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)**** ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** Specifications vary by CPU types. **** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
M.2 Socket
Total Supports 4 x M.2 slots
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP)
Maximum Memory
192GB
Graphics
Graphics
1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display outputs
Connector & Ports
HDMI
1x HDMI
USB (s)
Rear USB (Total 10 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®)* 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)** 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.
LAN Port (s)
1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module
Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
Supported Storage
Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot not support AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** 2 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
RAID
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5
Audio
5 x Audio jacks
Internal I/O Ports
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header
Others
Special Features
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with SPS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A - Compatible with PD3.0
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
TUF GAMING X870-PLUS WIFI
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Processors
Supported Memory
4 x DIMM, Max. 192GB, DDR5
Graphics Output
1 x HDMI, 2 x USB4 (40Gbps)
Features
1 x Realtek 2.5Gb Ethernet, Wi-Fi 7, Bluetooth v5.4
Part ID: #CAN-01163
Last Updated: 2 days ago
The Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard is engineered to deliver exceptional performance and durability, making it an ideal choice for gamers and PC builders who demand reliability. Designed to support AMD Ryzen 9000, 8000, and 7000 series processors, this motherboard features the AMD X870 chipset and AM5 socket, ensuring compatibility with the latest high-performance CPUs. It supports up to 192GB of DDR5 RAM with speeds up to 8000+ MT/s (OC), providing the speed and capacity needed for intensive gaming and multitasking. Storage options are extensive, with four M.2 slots and two SATA 6Gb/s ports, ensuring ample space for all your data needs. Connectivity is seamless with dual USB4 40Gbps Type-C ports, WiFi 7, and PCIe 5.0 slots, offering ultra-fast data transfer and connectivity. The motherboard's advanced cooling solutions, including enlarged VRM heatsinks, M.2 heatsinks, and multiple fan headers, ensure optimal performance even under heavy loads. Expansion is flexible with one PCIe 5.0 x16 slot and one PCIe 4.0 x16 slot, catering to various expansion requirements. Additionally, it supports 4K@60Hz graphics via HDMI 2.1 and DisplayPort 1.4a, delivering stunning visuals for an immersive experience. Customizable Aura Sync RGB lighting allows you to personalize your build with a wide range of colors and effects. Built with military-grade components and subjected to rigorous endurance testing, the Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard guarantees long-lasting durability and stability, making it a dependable choice for marathon gaming sessions and intensive computing tasks. With advanced AI overclocking, AI cooling, and AI networking features, this motherboard ensures your system runs at peak performance with minimal effort, providing the stability, speed, and customization options needed to build a high-performance PC.Buy Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard from Star TechIn Bangladesh, you can get original Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard From Star Tech. We have a large collection of the latest Asus Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard comes with 3 years of warranty.
