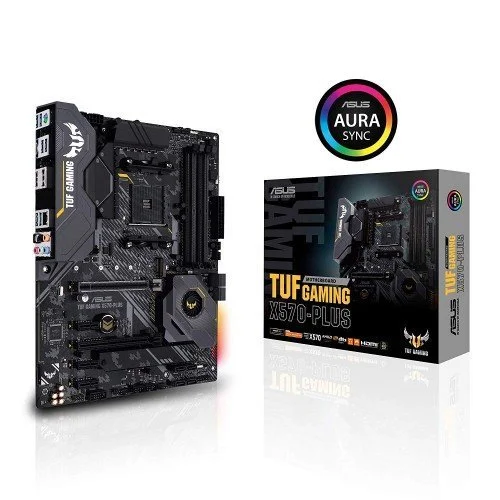

Asus TUF Gaming X570-Plus AM4 ATX Motherboard

Status
In Stock
3 stores
Lowest 26,680 BDT
Price Range Single price listing
Asus TUF Gaming X570-Plus AM4 ATX Motherboard

Product Description

Unlock Unparalleled Performance with the ASUS TUF Gaming X570-Plus AM4 ATX Motherboard

Gamers and PC enthusiasts, rejoice! The ASUS TUF Gaming X570-Plus AM4 ATX Motherboard is designed to deliver exceptional performance, stability, and durability for the most demanding applications. With its robust feature set and AMD X570 chipset, this motherboard is the perfect foundation for your next high-core-count AMD battle rig.

Key Features and Benefits

Here are some of the key features and benefits that set the ASUS TUF Gaming X570-Plus AM4 ATX Motherboard apart:

  • Support for 3rd and 2nd Gen AMD Ryzen processors with PCIe 4.0 x16 and PCIe 3.0/2.0 x16 slot options
  • 4 x DIMM slots with support for up to 128GB of DDR4 memory at 4400MHz (OC)
  • 1 x PCIe 4.0 x16 slot and 2 x PCIe 4.0 x1 slots for expanded graphics and storage options
  • 8 x SATA 6Gb/s ports and 1 x M.2 Socket 3 for fast storage and connectivity
  • Realtek ALC S1200A 8-Channel High Definition Audio CODEC for pristine audio
  • TUF Gaming Alliance ecosystem for easy compatibility and part-picking
Proprietary Technologies and Performance Enhancements

The ASUS TUF Gaming X570-Plus AM4 ATX Motherboard features a range of proprietary technologies and performance enhancements that set it apart from the competition.

**Turbo LAN with cFosSpeed traffic-shaping technology** adds lag-reducing support and an intuitive user interface, reducing lag by up to 1.45X.

**Game mode** prioritizes game-related data transmissions, smoothing network operations every time you play.

The motherboard also features a comprehensive cooling system, including 12+2 Dr. MOS power stages and a range of fan headers for customizable cooling options.

Part ID: #CAN-01900 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer Asus TUF Gaming X570-Plus AM4 ATX Motherboard
In Stock 26,680 5 hours ago
Buy Now
Nexus Computer ASUS TUF GAMING X570-PLUS AMD Motherboard
Check Stock 26,700 4 hours ago
Buy Now
PC House ASUS TUF GAMING X570-PLUS AM4 ATX MOTHERBOARD
Check Stock 27,890 1 month ago
Buy Now

Historical Pricing Trend

Product Specifications

Key Features

Form Factor ATX

Basic Information

Supported CPU AMD AM4 Socket 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/AMD Ryzen 2nd Generation/3rd Gen AMD Ryzen Processors
Chipset AMD X570
BIOS 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Memory

Ram Type DDR4
Type 3rd Gen AMD Ryzen Processors : 4 x DIMM, Max. 128GB, DDR4 4400(O.C) /3466(O.C.) / 3400(O.C. /3200(O.C.) / 3000(O.C.) / 2933(O.C.) /2800(O.C.) / 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen Processor : 4 x DIMM, Max. 128GB, DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200(O.C.)/ 3000(O.C.) / 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/ 3000(O.C.) / 2933(O.C.) / 2800(O.C.)/2666/ 2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Maximum Mamory 128GB, DDR4

Expansion Slots

PCI 3rd Gen AMD Ryzen Processors : 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen Processors : 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset : 1 x PCIe 4.0 x16 (max at x4 mode) ,2 x PCIe 4.0 x1
M.2 Socket Yes

Graphics

Graphics Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
Max Shared Memory Max. 128GB

Connector & Ports

HDMI Yes ( 1.4b )
Display Port (s) Yes
USB (s) 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) AMD X570 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-CTM) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board)
LAN Port (s) Yes ( RJ45 )
Supported Storage 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
Audio Realtek ALC S1200A 8-Channel High Definition Audio CODEC
Internal I/O Ports 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Warranty Information

Manufacturing Warranty 03 Years Warranty
