Product Description
Unleash the Power of 12th Gen Intel Core Processors

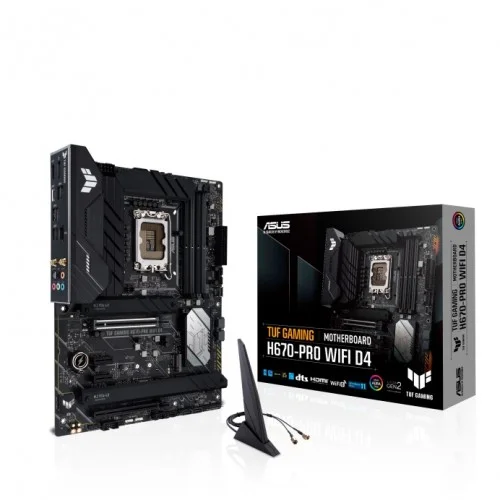

The ASUS TUF Gaming H670-Pro WIFI D4 motherboard is designed for gamers and content creators who demand the best performance and features. With its advanced power delivery, comprehensive cooling options, and support for faster memory and storage, this motherboard is the perfect choice for building a high-performance gaming rig.
Key Features and Technical Specifications- Supports Intel 12th Gen Core processors with up to 128GB of DDR4 memory and 5333 MHz speeds
- Four SATA III and four M.2 connectors for storage expansion
- PCIe 5.0 x16 slot for high-end graphics cards
- Intel Wi-Fi 6 module with 2.4 Gbps peak bandwidth
- 2.5Gb Ethernet for fast wired connections
- Comprehensive fan controls and thermal monitoring
Power Design and Cooling
The ASUS TUF Gaming H670-Pro WIFI D4 motherboard features an advanced power delivery system with 14+1 DRMOS power stages, delivering stable performance for current and future Intel processors. The motherboard also includes a six-layer PCB design, extensive VRM heatsink, and M.2 heatsinks to optimize heat management and improve system stability. Additionally, the motherboard features comprehensive fan controls and thermal monitoring, allowing users to customize cooling settings for optimal performance.
Part ID: #CAN-02146
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Motherboard Basic Info
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Motherboard Basic Information
Supported CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel H670 Chipset
Expansion Slots
M.2 Socket
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 Intel 12th Gen processors support PCIe 4.0 x4 mode Intel H670 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
PCI
1 x PCIe 5.0 x16 slot Intel H670 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots Please check PCIe bifurcation table in support site. Supports Intel Optane Memory H Series on PCH-attached PCIe slot
Memory Specifications
Type
DDR4
Motherboard Memory Info
Supported Memory
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture: Supports Intel Extreme Memory Profile (XMP) OptiMem II
Motherboard Graphics Info
Graphics
Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports (MB)
USB (s)
Rear USB:Total 7 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Internal I/O Ports
Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A ) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers
Supported Storage
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel H670 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Warranty Information
Manufacturing Warranty
3 years
Part ID: #CAN-02146
Last Updated: 1 month ago
