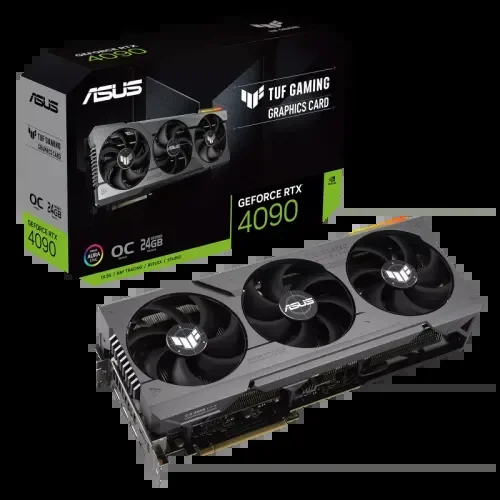

SPECIFICATIONS Video Memory Specifications Type GDDR6X Size 24GB Resolution Digital Max Resolution 7680 x 4320 Core Clock TBD BUS Type PCI Express 4.0 Memory Interface 384-bit Stream Processors NVIDIA Ada Lovelace Streaming Multiprocessors Interface Display Port Yes x 3 (Native DisplayPort 1.4a) HDMI Yes x 2 (Native HDMI 2.1a) HDCP Yes (2.3) Power Specifications Connectors 1 x 16-pin Display Option Multi Display 4 Application Programming Interfaces OpenGL OpenGL 4.6 Physical Specifications Dimensions 348.2 x 160 x 72.6 mm Others Slot: 3.65 slot AURA SYNC: ARGB Warranty Manufacturing Warranty 3 Years ASUS TUF GAMING GEFORCE RTX 4090 OC EDITION 24GB GDDR6X GRAPHICS CARD The ASUS TUF Gaming GeForce RTX 4090 OC Edition 24GB GDDR6X Graphics Card comes in with NVIDIA Ada Lovelace Streaming Multiprocessors. It delivers up to 2x performance and power efficiency. The ASUS TUF Gaming GeForce RTX 4090 OC Edition brings a whole new meaning to going with the flow. Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance. The ASUS TUF Gaming GeForce RTX 4090 OC Edition 24GB GDDR6X Graphics Card comes with 4th Generation Tensor Cores for up to 2X AI performance and 3rd Generation RT Cores for up to 2X ray tracing performance. It features Axial-tech fans scaled up for 23% more airflow. Axial-tech Fan is tuned up with more fan blades and a reversed rotational direction for the center fan. It offers a new patented vapor chamber with a milled heat spreader for lower GPU temps. The GPU has a 3.5-slot design with a massive fin array optimized for airflow from the three Axial-tech fans. It features a diecast shroud, frame, and backplate that add rigidity and are vented to further maximize airflow and heat dissipation. The ASUS TUF Gaming GeForce RTX 4090 OC Edition offers digital power control with high-current power stages and 15K capacitors to fuel maximum performance. The graphics card is loaded with GPU Tweak III software which provides intuitive performance tweaking, thermal controls, and system monitoring. The Latest ASUS TUF Gaming GeForce RTX 4090 OC Edition 24GB Graphics Card comes with 03 years warranty. ARMED FOR FLOW NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the TUF Gaming GeForce RTX 4090. Powered by GeForce RTX 40 Series New Streaming Multiprocessors: Up to 2x performance and power efficiency Fourth-Gen Tensor Cores: Up to 2x AI performance Third-Gen RT Cores: Up to 2x ray tracing performance Air Superiority Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance. Well-maintained Formation The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play. Phase That Blaze A vapor chamber and generously sized heatsink combo efficiently soak up heat from the GeForce RTX 4090 GPU so that it can be whisked away by the three Axial-tech fans. Resilient Squadron A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions. Suit Up A high-quality diecast shroud and aluminum backplate prevent PCB flex and feature large vents to further increase heat dissipation. RELIABILITY BOOST Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall. Light ‘em Up! Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you. Pillar of Support The bundled graphics card holder banishes sag and also contains a screwdriver to help you build. Pair with a PSU Check out our PSU landing page to learn more about how we’re pushing the industry forward and use our wattage calculator to estimate how much power you’ll need to fuel your next rig. ASUS TUF Gaming GeForce RTX 4090 OC Edition 24GB GDDR6X optimized inside and out for lower temps and durability. NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency 4th Generation Tensor Cores: Up to 2X AI performance 3rd Generation RT Cores: Up to 2X ray tracing performance Axial-tech fans scaled up to deliver 23% more airflow Dual Ball Fan Bearings last up to twice as long as conventional designs Military-grade Capacitors rated for 20K hours at 105C make the GPU power rail more durable Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation Auto-Extreme precision automated manufacturing for higher reliability GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring SEE MORE ASUS RTX 4090 SERIES GRAPHICS CARD: ASUS ROG STRIX GEFORCE RTX 4090 OC EDITION 24GB GDDR6X GRAPHICS CARD ASUS ROG STRIX GEFORCE RTX 4090 24GB GDDR6X GRAPHICS CARD ASUS TUF GAMING GEFORCE RTX 4090 OC EDITION 24GB GDDR6X GRAPHICS CARD ASUS TUF GAMING GEFORCE RTX 4090 24GB GDDR6X GRAPHICS CARD ..
