Product Description
Engineered by ASUS, this motherboard is featuring a **Micro-ATX** form factor and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **32,800 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-01903
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset
INTEL B860
BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback
Expansion Slots
PCI
Intel® CoreTM Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x4 slot
M.2 Socket
3x M.2
Memory
Type
DDR5
Slots
4
Supported Memory
4 x DIMM slots, max. 256GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Dual Channel Memory Architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory
Maximum Memory Capacity 256GB
Graphics
Graphics
1 x DisplayPort 1 x HDMI port 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4a
USB (s)
Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps ports (2 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A
LAN Port (s)
1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless Communication module
Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4 *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
Supported Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID
SATA RAID 0/1/5/10
Audio
5 x Audio jacks
Internal I/O Ports
I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports: 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Others
Special Features
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost
Warranty Information
Warranty
3 Years
Part ID: #CAN-01903
Last Updated: 2 days ago

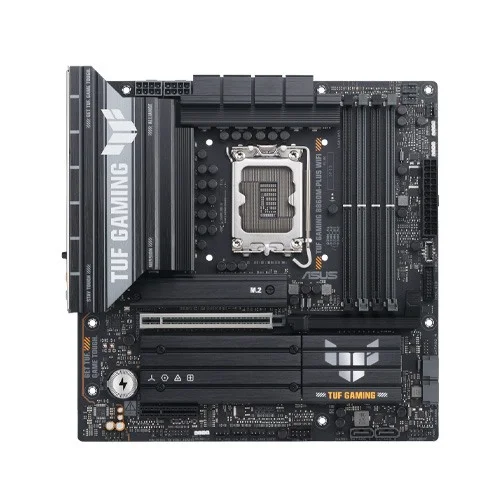

Asus TUF GAMING B860M-PLUS WIFI M-ATX Intel Motherboard is a powerful and reliable foundation for your next-gen Intel build. Designed with durability and performance in mind, this motherboard supports the latest Intel Core Ultra Series 2 processors with an LGA1851 socket, delivering top-tier speed and stability for gamers, creators, and power users alike. The mATX form factor ensures compatibility with a wide range of cases, while maintaining full functionality and expandability.This board comes equipped with cutting-edge DDR5 memory support, boasting speeds up to 8800+ MT/s (OC), and supports up to 256GB of RAM across 4 DIMM slots. For blazing-fast storage, it includes three M.2 slots—one of which supports PCIe 5.0 for next-gen SSDs—and four SATA 6Gb/s ports, ensuring you're ready for any storage demand.Connectivity is exceptional, featuring WiFi 7 for ultra-fast wireless speeds, 2.5Gb LAN for stable wired connections, and extensive USB options including USB 20Gbps Type-C, USB 10Gbps, and multiple front and rear USB ports. The board also includes DisplayPort 1.4 and HDMI 2.1, allowing for crisp 4K@60Hz video output.Built with TUF Protection features like ESD guards, stainless-steel back I/O, and overvoltage protection, this motherboard offers enhanced durability. ASUS-exclusive features like Armoury Crate, Fan Xpert 2+, and Aura Sync RGB ensure an easy, customizable experience for both novice and expert users. The enhanced thermal design includes VRM and M.2 heatsinks for efficient cooling.Whether you're building a high-performance gaming PC or a workstation, the TUF GAMING B860M-PLUS WIFI offers all the tools you need for a reliable and powerful system that’s ready for anything.FeaturesSupports Intel Core Ultra Series 2 processors with LGA1851 socketBuilt-in WiFi 7 & 2.5Gb LAN for ultra-fast connectivityPCIe 5.0 M.2 slot for next-gen storage speedsDDR5 memory up to 8800+MT/s with max 256GB supportRobust power design with DIGI+ VRM and TUF ProtectionEnhanced cooling with VRM & M.2 heatsinksUSB 20Gbps Type-C, HDMI 2.1 & DisplayPort 1.4Q-Design for easy building – Q-LED, Q-Latch, Q-Release..
