Status
In Stock
3 stores
Lowest Deal
32,500 BDT
Best Deal
Price Range
Single price listing
Product Description

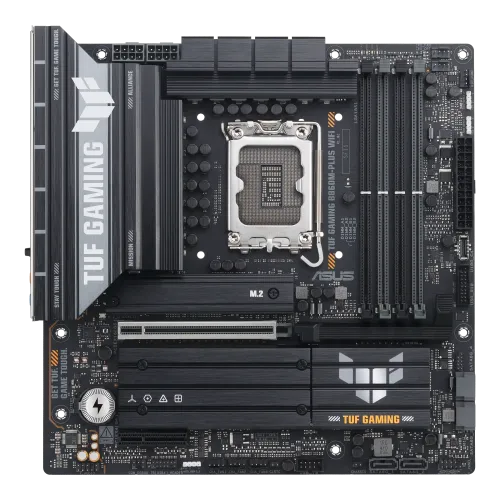

ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard
Unleash Your Gaming Potential
Designed for gamers and PC enthusiasts, the ASUS TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard offers exceptional performance, reliability, and cutting-edge features. With its robust Intel B860 chipset and support for Intel Core Ultra Processors Series 2, this motherboard delivers a seamless gaming and productivity experience.
Key Features and Benefits
- PCIe 5.0 and PCIe 4.0 Support: Future-proof your system with the latest PCIe standards, enabling faster data transfer and improved overall performance.
- Wi-Fi 7 and Bluetooth 5.4: Enjoy enhanced wireless connectivity and seamless communication with the latest Wi-Fi 7 and Bluetooth 5.4 technologies.
- Up to 256GB DDR5 Memory: Unlock peak system performance with support for up to 256GB of DDR5 memory, overclocked to 8800MT/s.
- 3x M.2 Slots and 4x SATA 6Gb/s Ports: Seamlessly integrate high-speed storage solutions with three M.2 slots and four SATA 6Gb/s ports.
- Realtek 2.5Gb LAN and 7.1 Surround Sound Audio: Experience lag-free online gaming and immersive audio with the Realtek 2.5Gb LAN and 7.1 surround sound audio capabilities.
ASUS Exclusive Technologies
The ASUS TUF GAMING B860M-PLUS WIFI Motherboard features a range of proprietary technologies designed to enhance performance, cooling, and overall system stability.
- TUF LANGuard and ESD Guards: Protect your system from electrical surges and damage with ASUS's advanced TUF LANGuard and ESD Guards.
- Overvoltage Protection and SafeSlot: Safeguard your system from power surges and overclocking mishaps with ASUS's Overvoltage Protection and SafeSlot technologies.
- Aura Sync RGB Lighting: Personalize your system's aesthetic with ASUS's Aura Sync RGB lighting, fully customizable to match your unique style.
Part ID: #CAN-01108
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Sell Tech
Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard
|
In Stock | 32,400 | 5 hours ago | |
|
Star Tech
Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard
|
In Stock | 33,400 | 1 week ago | |
|
Skyland BD
Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard
|
In Stock | 33,900 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset
INTEL B860
BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback
Expansion Slots
PCI
Intel® CoreTM Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x4 slot
M.2 Socket
3x M.2
Memory
Type
DDR5
Slots
4
Supported Memory
4 x DIMM slots, max. 256GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Dual Channel Memory Architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory
Maximum Memory Capacity 256GB
Graphics
Graphics
1 x DisplayPort 1 x HDMI port 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4a
USB (s)
Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps ports (2 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A
LAN Port (s)
1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless Communication module
Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4 *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
Supported Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID
SATA RAID 0/1/5/10
Audio
5 x Audio jacks
Internal I/O Ports
I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports: 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Others
Special Features
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost
Warranty Information
Manufacturing Warranty
3 Year warranty
Key Features
Model
TUF GAMING B860M-PLUS WIFI
Supported CPU
Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM
4x DDR5, Max 256GB, 8800+MT/s (OC)
Graphics Output
1x HDMI, 1x DisplayPort, 1x USB (20Gbps)
Features
3x M.2, Realtek 2.5Gb LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01108
Last Updated: 1 month ago
