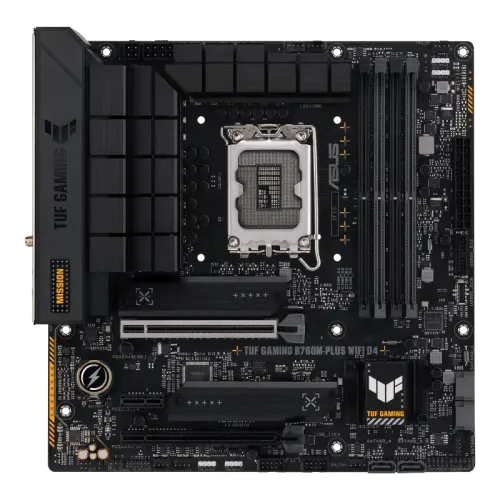

Asus TUF GAMING B760M-PLUS WIFI D4 Motherboard

Product Description

Upgrade Your Gaming Experience with the ASUS TUF GAMING B760M-PLUS WIFI D4 Motherboard

Designed for gamers and PC enthusiasts, the ASUS TUF GAMING B760M-PLUS WIFI D4 Motherboard offers rock-solid performance, proven durability, and a sophisticated cooling system to power your marathon gaming sessions. With its military-grade components and enhanced power solution, this motherboard is the perfect foundation for your next Intel battle rig.

Key Features and Benefits

Here are some of the key features and benefits of the ASUS TUF GAMING B760M-PLUS WIFI D4 Motherboard:

  • Support for 14th, 13th Gen & 12th Gen Intel Processors (LGA1700)
  • 4 x DIMM, Max. 128GB, DDR4 Memory
  • Realtek 2.5Gb Ethernet and Wi-Fi 6 for seamless online gaming
  • 1 x DisplayPort and 1 x HDMI for high-quality graphics output
  • PCIe 4.0 Storage for fast data transfer and storage
Advanced Technologies and Features

The ASUS TUF GAMING B760M-PLUS WIFI D4 Motherboard features several advanced technologies and features that enhance its performance and durability, including:

TUF PROTECTION - DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, and Stainless-Steel Back I/O

ASUS Q-Design - M.2 Q-Latch, Q-DIMM, Q-LED, and Q-Slot

ASUS Thermal Solution - M.2 heatsink and VRM heatsink design

ASUS EZ DIY - CPU Socket lever protector, ProCool, and Pre-mounted I/O shield

Part ID: #CAN-01337 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech Asus TUF GAMING B760M-PLUS WIFI D4 Motherboard
In Stock Call for Price 1 week ago
Buy Now
PC House Asus TUF GAMING B760M-PLUS WIFI D4 12th Gen & 13th Gen Motherboard
Check Stock Call for Price 4 hours ago
Buy Now
Binary Logic Asus TUF GAMING B760M-PLUS WIFI D4 Motherboard
Check Stock 27,500 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers

Expansion Slots

PCI Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
M.2 Socket Total supports 2 x M.2

Memory

Type DDR4
Slots 4 x DIMM
Supported Memory 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC) /3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory Max. 128GB

Graphics

Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)

Connector & Ports

HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless Communication module Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio 5 x Audio jacks
Internal I/O Ports I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port

Others

Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty 3 years warranty

Key Features

Model TUF GAMING B760M-PLUS WIFI D4
Supported CPU 14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory 4 x DIMM, Max. 128GB, DDR4
Graphics Output 1 x DisplayPort, 1 x HDMI
Features 1 x Realtek 2.5Gb Ethernet, Wi-Fi 6
Part ID: #CAN-01337 Last Updated: 1 month ago
