Product Description

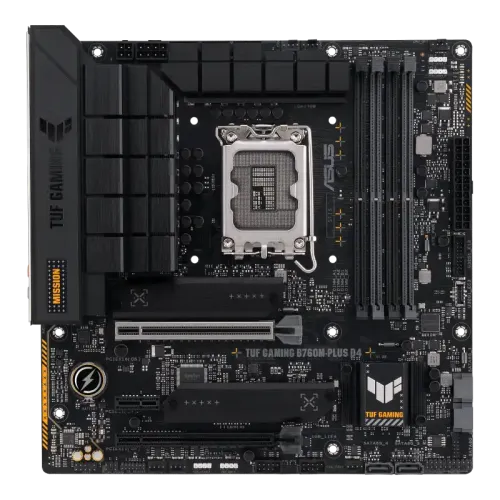

Engineered by ASUS, this motherboard is designed for **LGA1700** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **20,800 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01325
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 14th 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel B760 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI
Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
M.2 Socket
Total supports 2 x M.2
Memory
Type
DDR4
Slots
4 x DIMM
Supported Memory
5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC) /3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
Max. 128GB
Graphics
Graphics
1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)
TUF LANGuard 1 x Realtek 2.5Gb Ethernet TUF LANGuard
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio
5 x Audio jacks
Internal I/O Ports
I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Others
Special Features
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 years warranty
Key Features
Model
TUF GAMING B760M-PLUS D4
Supported CPU
14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory
4 x DIMM, Max. 128GB, DDR4
Graphics Output
1 x DisplayPort, 1 x HDMI
Part ID: #CAN-01325
Last Updated: 2 days ago
The Asus TUF GAMING B760M-PLUS D4 Motherboard combines all of the main components of the most recent Intel CPUs with game-ready features and proven endurance. This motherboard exceeds expectations with rock-solid performance for marathon gaming, thanks to military-grade components, an enhanced power solution, and a sophisticated cooling system. 14th Gen Motherboards are also subjected to extensive durability testing to guarantee that they can withstand situations that might cause other motherboards to fail. This model features an embossed nameplate and geometric design elements to symbolize the reliability and stability that is synonymous with the TUF GAMING line. The Asus TUF GAMING Alliance is a cooperation between ASUS and well-known PC component manufacturers to assure compatibility across a wide variety of parts, including PC cases, power supplies, CPU coolers, memory kits, and more. The TUF GAMING Alliance will grow even stronger as new collaborations and components are added regularly. The Asus TUF GAMING B760M motherboards offer a feature-rich high-performance gaming package, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with connected gear to personalize your gaming environment.Buy Asus TUF GAMING B760M-PLUS D4 Motherboard from the best Motherboard Shop in BDIn Bangladesh, you can get original Asus TUF GAMING B760M-PLUS D4 Motherboard From Star Tech. We have a large collection of latest ASUS Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Asus TUF GAMING B760M-PLUS D4 Motherboard comes with 3 years warranty.
