Product Description

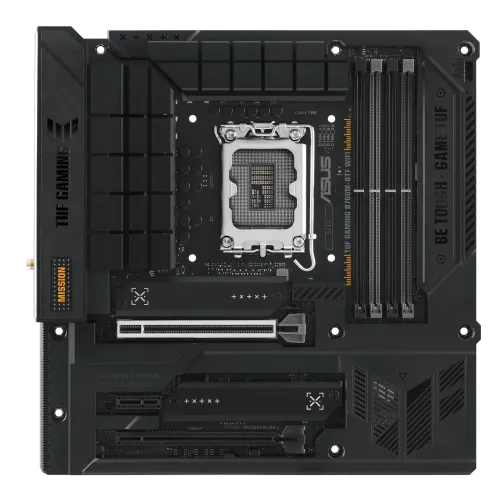

Unleash Gaming Frenzy with the ASUS TUF GAMING B760M-BTF WIFI
Designed for PC DIY gamers who demand top-notch performance and durability, the ASUS TUF GAMING B760M-BTF WIFI micro-ATX motherboard is the ultimate powerhouse. With its support for 14th, 13th, and 12th Generation Intel processors and DDR5 memory, this motherboard is the perfect foundation for a high-performance gaming system.
Key Features and Benefits
- Supports 14th, 13th, and 12th Generation Intel processors with LGA1700 socket
- Four DIMM slots supporting up to 192GB DDR5 memory rated at 7200MHz (OC)
- 1 x DisplayPort and 1 x HDMI for high-quality graphics output
- Realtek 2.5Gb Ethernet and Wi-Fi 6 for reliable and fast network access
- Micro-ATX form factor with clean cable management and a streamlined design
ASUS TUF PROTECTION and ASUS Q-Design
The ASUS TUF GAMING B760M-BTF WIFI motherboard features a robust set of proprietary technologies designed to ensure optimal performance, durability, and ease of use. These include:
- ASUS TUF PROTECTION - DIGI+ VRM, ESD Guards, TUF LANGuard, and Overvoltage Protection for reliable power delivery
- ASUS Q-Design - M.2 Q-Latch, Q-DIMM, Q-LED, and Q-Slot for easy installation and monitoring
- ASUS Thermal Solution - M.2 heatsinks and VRM heatsink design for efficient cooling
Part ID: #CAN-01378
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel B760 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers
Expansion Slots
PCI
Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
M.2 Socket
3 x M.2
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
Max. 192GB
Graphics
Graphics
x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1.
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C) 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
LAN Port (s)
1 x Realtek 2.5Gb Ethernet
Wireless Communication module
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio
3 x Audio jacks
Internal I/O Ports
Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x USB Type-C) 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 10-1 pin System Panel header 1 x Thunderbolt (USB4) header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - Clear CMOS button - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - FAN Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
TUF GAMING B760M-BTF WIFI
Supported CPU
14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory
4 x DIMM, Max. 192GB, DDR5 7200(OC)
Graphics Output
1 x DisplayPort, 1 x HDMI
Features
1 x Realtek 2.5Gb Ethernet, Wi-Fi 6
