Product Description

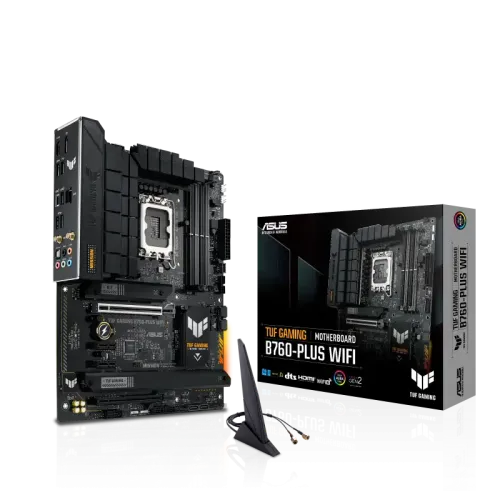

Unleash Unparalleled Gaming Performance with the ASUS TUF GAMING B760-PLUS WIFI DDR5 Motherboard
Designed for serious gamers and PC enthusiasts, the ASUS TUF GAMING B760-PLUS WIFI DDR5 motherboard offers a robust platform for the latest Intel CPUs, delivering exceptional performance, durability, and features that elevate your gaming experience.
Key Features and Technical Specifications
Technical Highlights:
- Supports Intel 14th, 13th Gen, and 12th Gen Processors (LGA1700)
- 4 x DIMM, Max. 128GB, DDR5 memory support
- Ultra-fast networking with Intel 2.5Gb Ethernet and Wi-Fi 6
- Realtek 7.1 Surround Sound High Definition Audio CODEC with 5 x Audio jacks
- 3 x M.2 slots and 4 x SATA 6Gb/s ports for storage expansion
- PCIe 5.0 x16 slot and 2 x PCIe 3.0 x1 slots for graphics and expansion cards
Advanced Technologies and Features
ASUS TUF GAMING Technologies:
The ASUS TUF GAMING B760-PLUS WIFI DDR5 motherboard boasts a range of innovative features, including ASUS TUF PROTECTION, ASUS Q-Design, and ASUS Thermal Solution. The DIGI+ VRM power delivery system ensures stable and efficient power to the CPU, while the ESD Guards and Overvoltage Protection safeguard against electrical surges and spikes. The M.2 Q-Latch and Q-DIMM simplify memory installation, and the Q-LED indicators provide real-time system monitoring.
Unlock Your Gaming Potential
With the ASUS TUF GAMING B760-PLUS WIFI DDR5 motherboard, you can unlock new levels of performance, customization, and convenience. Enjoy seamless online gaming with Intel 2.5Gb Ethernet and Wi-Fi 6, and immerse yourself in stunning audio with Realtek 7.1 Surround Sound. Take control of your system with ASUS Armoury Crate and Fan Xpert 4, and unleash your creativity with Aura RGB lighting and customizable peripherals.
Part ID: #CAN-01347
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Asus TUF GAMING B760-PLUS WIFI DDR5 ATX Motherboard
|
In Stock | Call for Price | 1 week ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 14th gen 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel B760 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF outport - Premium audio capacitors - Dedicated audio PCB layers - Audio cover
Expansion Slots
PCI
Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.
M.2 Socket
Total supports 3 x M.2 slots
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
Max. 128GB
Graphics
Graphics
1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)
1 x Intel 2.5Gb Ethernet TUF LANGuard
Wireless Communication module
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Audio
5 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Others
Special Features
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 years warranty
Key Features
Model
TUF GAMING B760-PLUS WIFI DDR5
Supported CPU
14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory
4 x DIMM, Max. 128GB, DDR5
Graphics Output
1 x DisplayPort, 1 x HDMI
Features
1 x Realtek 2.5Gb Ethernet, Wi-Fi 6
