Product Description

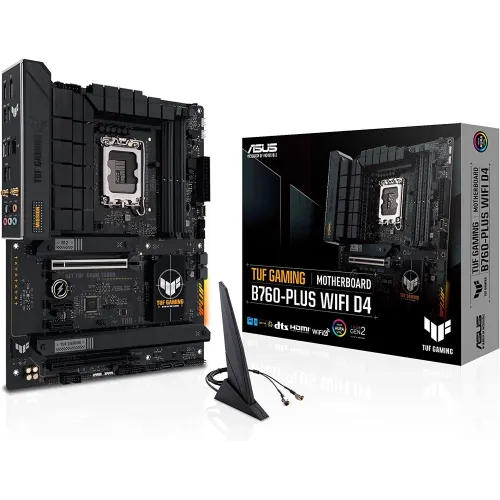

Asus TUF GAMING B760-PLUS WIFI D4 ATX Motherboard
Unleash Your Gaming Potential
Designed for gaming enthusiasts and PC builders who demand top-tier features and durability, the Asus TUF GAMING B760-PLUS WIFI D4 ATX Motherboard is the perfect choice for those seeking a high-performance solution. With its robust design and advanced technology, this motherboard delivers exceptional performance, stability, and connectivity.
Key Features and Benefits
- Supports 14th, 13th Gen, and 12th Gen Intel Core Processors - Enjoy seamless performance and future-proof your system with the latest Intel processors.
- PCIe 5.0 Slot and PCIe 4.0 M.2 Slots - Unlock ultra-fast storage and transfer speeds for an enhanced gaming experience.
- Intel WiFi 6 and Realtek 2.5Gb Ethernet - Stay connected with lag-free and reliable internet connectivity.
- Bi-Directional AI Noise Cancellation - Enjoy crystal-clear communication during gaming or video conferencing.
- Extended VRM Heatsinks and Hybrid Fan Headers - Maintain optimal performance during extended gaming sessions.
Asus TUF GAMING B760-PLUS WIFI D4 Proprietary Technologies
Enhanced Power Solution - The Asus TUF GAMING B760-PLUS WIFI D4 motherboard features 12+1 DrMOS power stages, a six-layer PCB, 8+4 ProCool sockets, military-grade TUF components, and Digi+ VRM to ensure maximum durability and stability.
Comprehensive Cooling - This motherboard prioritizes cooling with extended VRM heatsinks, M.2 heatsinks, PCH heatsinks, hybrid fan headers, and Fan Smart 4 technology to keep temperatures in check.
Part ID: #CAN-01329
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Asus TUF GAMING B760-PLUS WIFI D4 ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Creatus Computer
Asus TUF GAMING B760-PLUS WIFI D4 13th Gen ATX Motherboard
|
In Stock | Call for Price | 5 hours ago | |
|
Computer Village
ASUS TUF GAMING B760-PLUS WIFI Intel 13th Gen ATX Motherboard
|
In Stock | 29,000 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel B760 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover
Expansion Slots
PCI
Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.
M.2 Socket
Total supports 3 x M.2 slots
Memory
Type
DDR4
Slots
4 x DIMM
Supported Memory
ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
Max. 128GB
Graphics
Graphics
1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)
1 x Intel 2.5Gb Ethernet TUF LANGuard
Wireless Communication module
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Audio
5 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Others
Special Features
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 years warranty
Key Features
Model
TUF GAMING B760-PLUS WIFI D4
Supported CPU
14th 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory
4 x DIMM, Max. 128GB, DDR4
Graphics Output
1 x DisplayPort, 2 x HDMI
Features
1 x Realtek 2.5Gb Ethernet, Wi-Fi 6
